Pre-Heating of Parts, Processes and Solutions

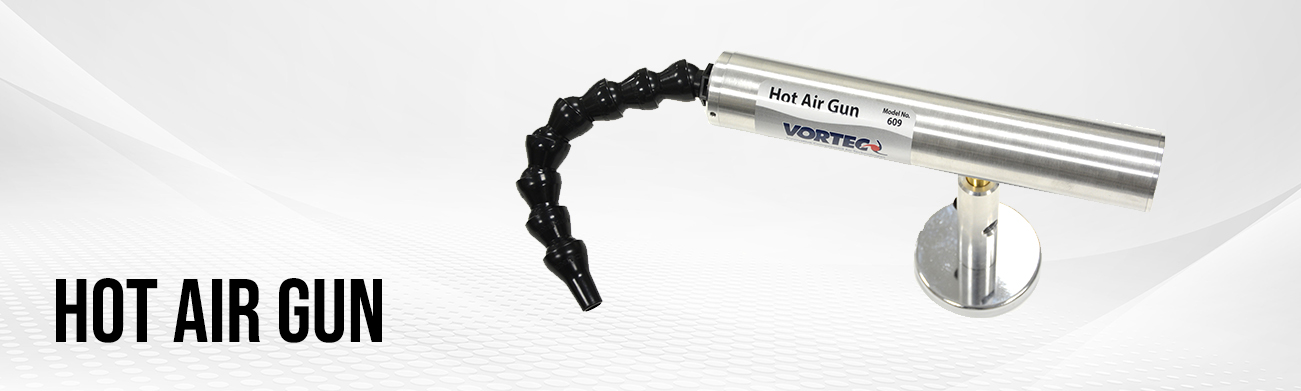

Hot Air Guns are used where milder heat is needed as compared to an electric heat gun. It is ideal for pre-heating of parts, processes and solutions, with an output flow rate of 2-8 scfm; and is also widely used for softening adhesives, rubber and vinyl, and accelerating drying. The hot air gun requires no electricity at the target, and uses only filtered compressed air to generate fully adjustable temperatures up to 200 deg F.

Benefits

  1. Softer heat than electric heat guns to prevent scorching
  2. No spark hazard at the target
  3. Instant on / instant off
  4. Pre-heating of parts, processes and solutions
  5. Softening adhesives, rubber and vinyl
  6. Accelerate drying

Features

  1. Hot air flows up to 200°F (93°C)
  2. No electricity used at the target
  3. Portable magnetic base
  4. Exceptionally reliable—no moving parts
  5. No EMI / RFI interference
  6. Meets OSHA noise and pressure specifications

Hot Air Gun Specifications

SPECIFICATION 609 609-BSP 609-1 609-1-BSP
Heating Capacity (BTU/hr) 900 900 900 900
Maximum Outlet Temperature (deg F) 200 200 200 200
Compressed Air Pressure (psig) 80 - 100 80 - 100 80 - 100 80 - 100
Air Consumption @ 100 psig (scfm) 15 15 15 15
Inlet Size 1/4" NPT 1/4" BSPP 1/4" NPT 1/4" BSPP
Outlet Air Flow Rate (scfm) 2 - 8 2 - 8 2 - 8 2 - 8
Recommended Filter Size 25 scfm 25 scfm 25 scfm 25 scfm
Recommended Filter 7015-24A 7035-24A 7015-24A 7035-24A
System or Gun Only? System System Gun Only Gun Only
Dimensions (inches)
Overall Length 17 7/8 17 7/8 17 7/8 17 7/8
Diameter 1 3/4 1 3/4 1 3/4 1 3/4
Nozzle Length 8 8 8 8
Flexible Nozzles Diameter 1 1 1 1
Outlet Diameter (ID) 3/8 3/8 3/8 3/8
Magnetic Base Height 4 1/8 4 1/8 - -
Weight (lbs) 3.0 3.0 1.0 1.0
