keep Enclosures cool in Hazardous Locations

Hazardous Location (HazLoc) Duty Vortex A/C Coolers are designed specifically for purged* Electrical enclosures in Class I Div 2, Groups A,B,C and D locations, Class II Div 2, Groups F&G and Class III locations. The HazLoc Vortex A/C incorporates the most up-to-date features into Vortec’s line of highly reliable, cost effective enclosure coolers.

  1. Sleek, modern design
  2. Noise reduction of 78%, when compared to other vortex enclosure coolers
  3. Energy use reduction through its integral mechanical thermostat
  4. Quick and easy installation in about 5 minutes
  5. Flexible installation: top, side or front (door) mount
  6. Incorporates check valve to prevent loss of enclosure pressure when cooling is not required
  7. T4 Temperature Class rating

The HazLoc Vortex A/C is available in 4 different cooling capacities. All of Vortec’s Enclosure Coolers keep Electrical and Electronic Enclosures cool, clean and protected and are a low cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans. Today’s small, compact multi-function electronic controls, variable speed drives, servos and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below rated loads. The result is productivity lost due to machine or line shutdowns.

HazLoc Vortex A/Cs maintain a slight pressurization on the cabinet to keep electrical and electronic components clean and dry; and most are thermostatically controlled to maintain enclosure temperatures within a specified temperature range.

* Purge system not included with purchase.

Benefits

  1. Easy to install, takes about 5 minutes
  2. No wiring required to install
  3. UL Classified for Class I Div 2, Groups A,B,C and D, Class II Div 2, Groups F&G and Class III
  4. Thermostatically controlled to maintain enclosure temperatures within ideal range
  5. Highly reliable, with full 10 year warranty
  6. No ambient, dirty or humid air enters the cabinet
  7. Can be used on all cabinets, even in tight spaces
  8. Operates in environments up to 175 deg F
  9. Significantly lower cost, compared to explosion proof Freon air conditioners
  10. Reduce operating cost with mechanical thermostat turning the unit on only when necessary
  11. Very quiet, 62 dBA operation, 78% quieter than typical vortex coolers
  12. Multiple cooling capacities available, to optimize performance and operating cost
  13. Little maintenance required, as compared to Freon A/C and fans
  14. Use no refrigerants
  15. Sleek, modern design

Features

  1. UL Classified
  2. Small footprint to fit on all enclosures and in confined areas
  3. Top, side or front (door) mount models available
  4. Maintain temperature between 80 - 90 deg F
  5. Supplied with air filter and ducting kit
  6. Maintains slight pressurization in the enclosure
  7. UL Listed and UL Classified

HazLoc Vortex A/C Specifications

PRODUCT NUMBER Cooling Capacity (BTU/hr) Air Consumption @ 100 psig (scfm) Rating System or Cooler Only? Sound Level Thermostat
7215 900 15 HazLoc* Cooler Only 60 dBA Mechanical
7225 1500 25 HazLoc* Cooler Only 66 dBA Mechanical
7235 2500 35 HazLoc* Cooler Only 72 dBA Mechanical
7270 5000 70 HazLoc* Cooler Only 75 dBA Mechanical
7515 900 15 HazLoc* System 60 dBA Mechanical
7525 1500 25 HazLoc* System 66 dBA Mechanical
7535 2500 35 HazLoc* System 72 dBA Mechanical
7570 5000 70 HazLoc* System 75 dBA Mechanical

Product Instructions

Case Studies

HazLoc Vortex A/C Offers High Reliability at Low Costs
Company Overview Based out of Austin, TX, Applied Rigaku Technologies (ART) is a division of the global Rigaku Corporation. Rigaku's ART division designs, manufactures, and distributes energy dispersive X-ray fluorescence (XRF) spectrometers globally. XRF spectrometers are used to determine the elemental composition of materials in a wide variety of applications. These products are used across many different markets including petroleum, chemical, agriculture, food, and metals.

The Challenge Applied Rigaku Technologies faced the challenge of effectively and efficiently cooling their NEX OL Process Elemental Analyzer while meeting their customers’ price expectations. When exploring potential cooling options, the team at ART found that most air conditioning solutions were cost prohibitive. They needed a cooling solution that not only provided the necessary cooling capacity, but also adhered to the specific location classification requirements of their customers. Finding a solution that met these criteria and fit within their pricing requirements was no easy task.

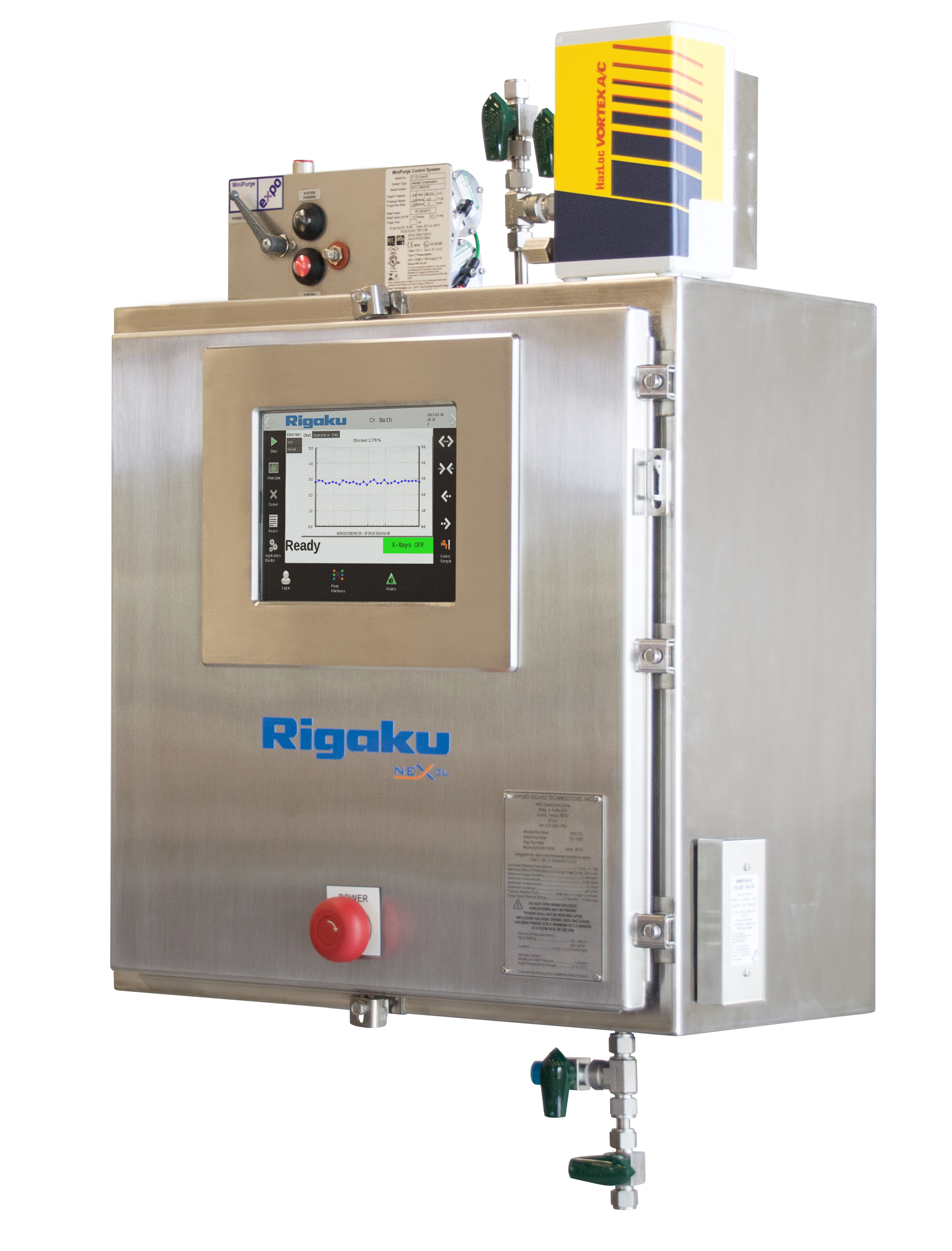

The Solution The team at ART worked with their distributor, ISC Sales, to explore their options. After evaluating the necessary criteria and pricing requirements, ISC Sales suggested the Vortec HazLoc Vortex A/CVortec HazLoc Vortex A/C enclosure coolers, available with cooling capacities ranging from 900 to 5,000 BTU/hour. For their NEX OL Process Elemental Analyzer, the Rigaku team selected the 2500 BTU/hr HazLoc Vortex A/C. The HazLoc Vortex A/C is UL Classified for Class I Div 2, Groups A,B,C and D, Class II Div 2, Groups F & G and Class III, making it the perfect solution for the application.

The Result After receiving and installing the HazLoc Vortex A/C, ART was extremely satisfied with the reliability and quality of the product. “The Vortex A/C line gives us a good balance of reliability, cost, and cooling capacities that we need for specific projects,” states President and CEO of Applied Rigaku Technologies, Robert Bartek. With the robust design and no moving parts, Vortex A/C units require no maintenance, making it a reliable, hassle-free solution. Bartek went on to state that when looking at the rate of “BTU per dollar spent” the Vortex A/C is a much less expensive option than other alternatives.

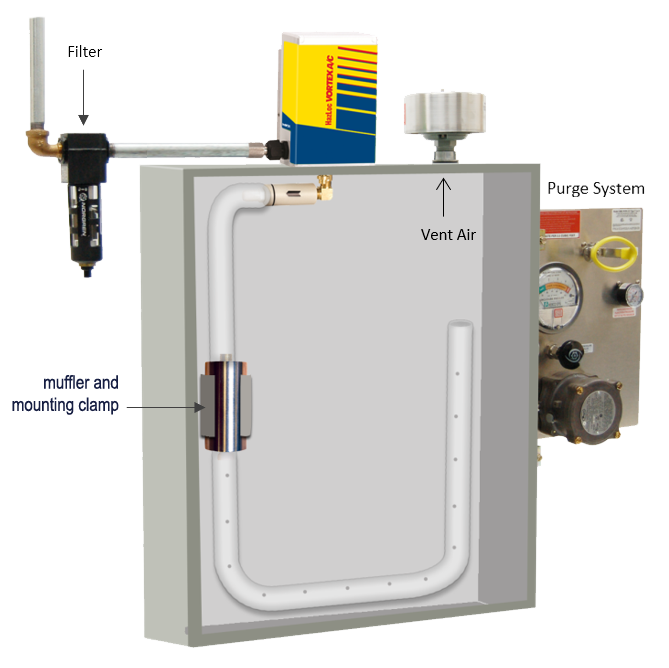

How it Works The HazLoc Vortex A/C uses compressed air and vortex tube technology to create clean, dry, low-pressure cold air to cool an electronic enclosure. The HazLoc Vortex A/C utilizes a built-in non-adjustable mechanical thermostat to monitor the temperature inside an enclosure. The thermostat regulates an air valve to the vortex cooler to keep the enclosure's temperature between 80 and 90°F (27 to 32°C). The cold air pressurizes the enclosure slightly to keep any contaminants or humidity out of the enclosure. All models can be mounted on the top or side of an enclosure and install in a matter of minutes. All Vortex A/C models are available in cooling capacities from 900 to 5000 btuh (263 to 1465 watts). The HazLoc Vortex A/C is UL Classified for Class I Div 2, Groups A,B,C and D, Class II Div 2, Groups F&G and Class III.
