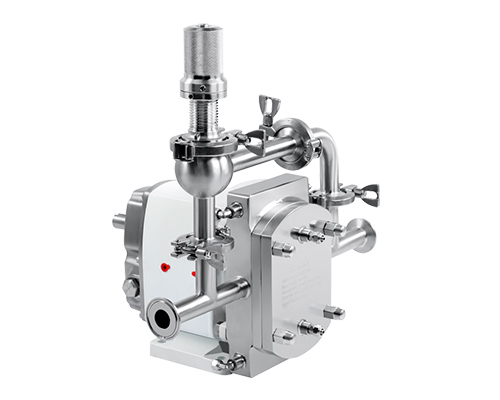

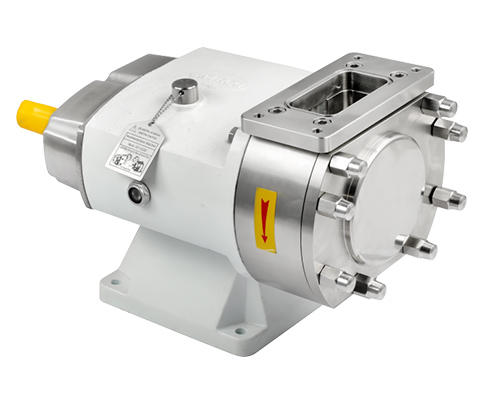

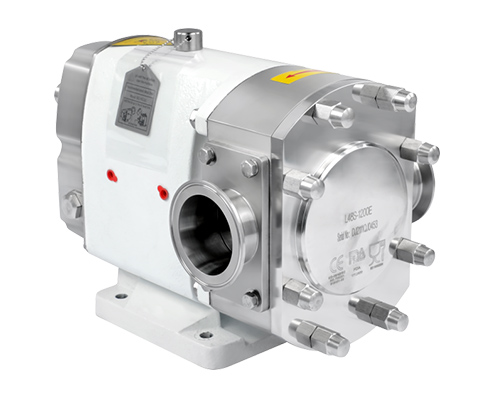

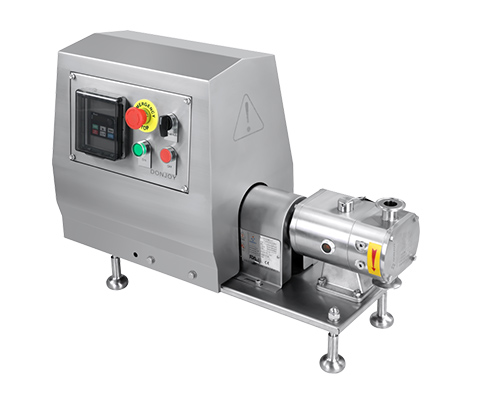

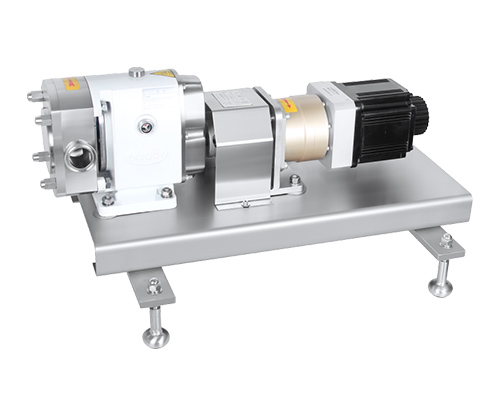

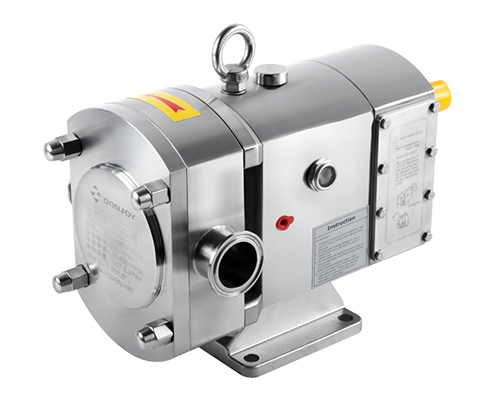

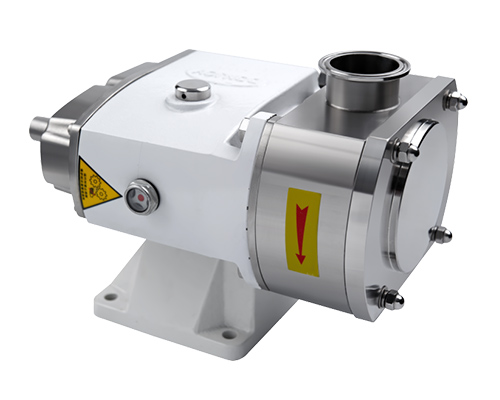

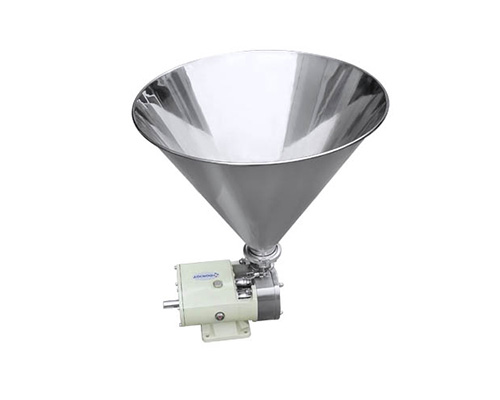

The SAN PUMP STU series is a full-stainless steel positive displacement cam rotor pump designed according to the strict sanitary requirements of 3A-02-11 of the United States. It is very suitable for food processing, beverages, juices, dairy products, cosmetics, pharmaceutical industries, etc. The transport of low-viscosity materials can be carried out with solid particulate materials and applied to CIP, SIP systems. The pump has features which do not found in other volumetric pumps, such as low pulse, high pressure, rotary two-way reversible and flexible functional combinations.

Maximum flow Max.flow: 90m3 / h / 395 GPM
Maximum pressure Max.pressure: 15bar/220 Psi
Maximum temperature Max.Temperature: 150°C/302°F
Maximum speed Max.rev: 750 rpm
Material: 316L, 1.4404, ASME BPE 316L, 1.4435 NB2 Fe ≤ 0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Certification : 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No .705201402401-00
