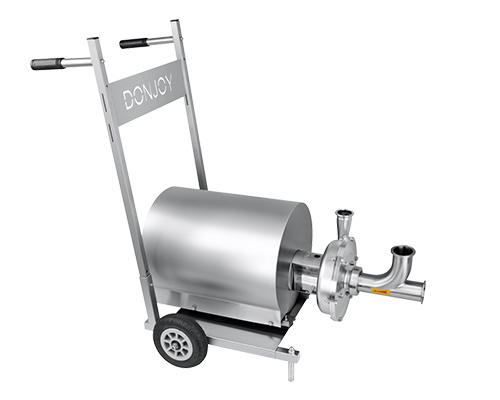

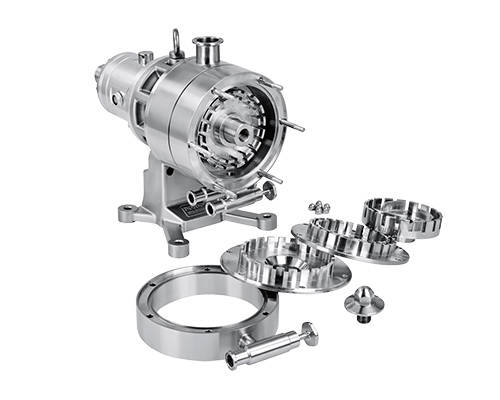

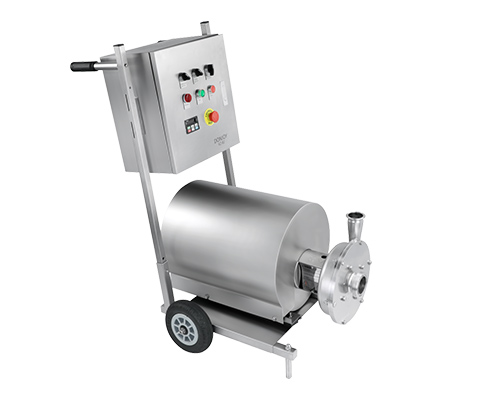

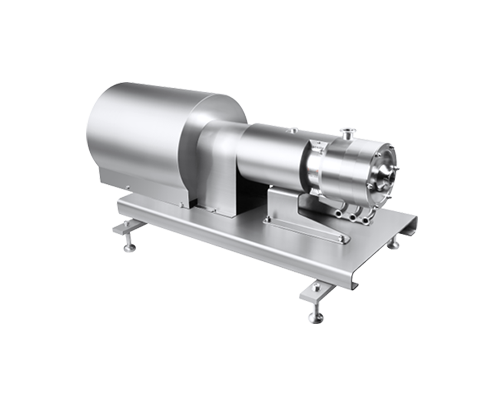

The SAN - JZ1 series is an in-line continuous production emulsified homogenizing pump consisting of stator and rotor. The treated material will be dispersed, sheared, refined, crushed, emulsified and mixed through 6-10 layers of rotor and stator. homogenization, etc. Compared with the conventional production process, the pump is simpler, more convenient and more optimized, it improves the production efficiency and quality of the material to be treated. Mainly used in food, beverage, pharmaceutical, health care, fine chemicals, coatings, pesticides, daily washing, paper and other industrial fields.

Maximum handle capacity : 65m3/h
Maximum power Max power :75KW
Maximum temperature Max temperature: -20 ° C to 140 ° C
Material refinement Media refinement: ≤ 60 GRIT (≈ 300μm) ≤60 mesh (about 300μm)
Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single seal and double seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;
