SAN MV Series

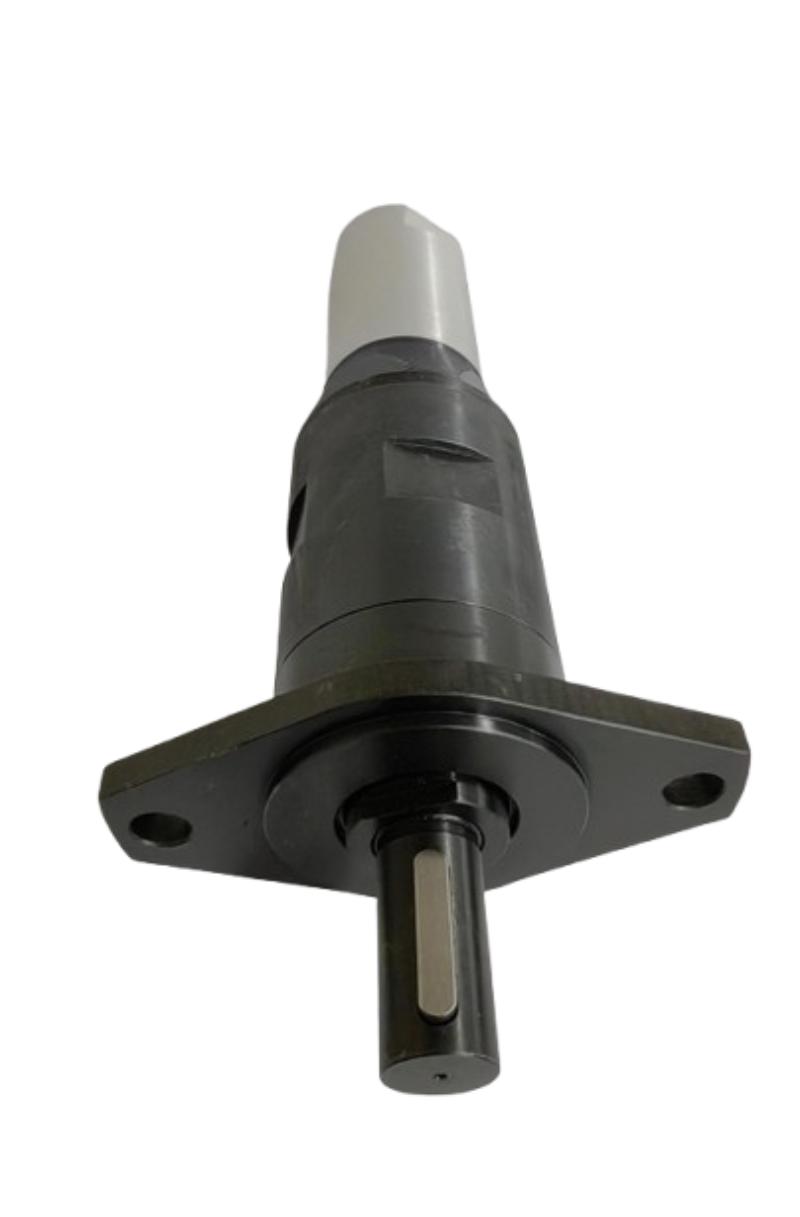

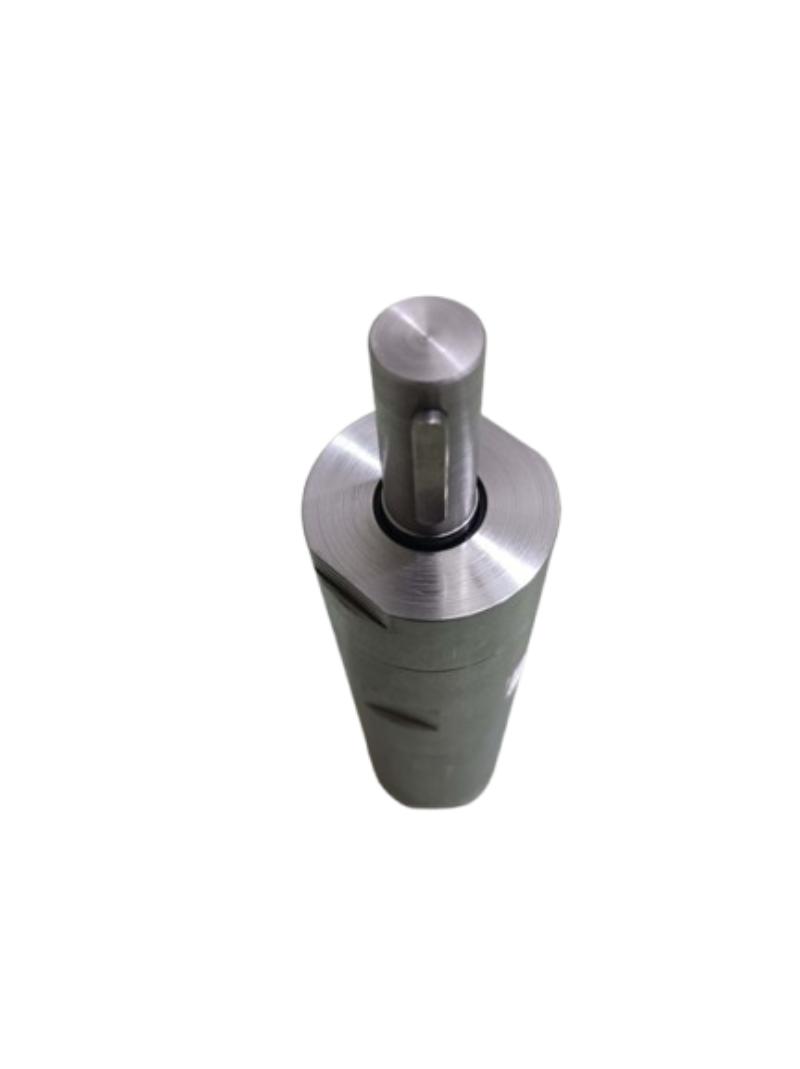

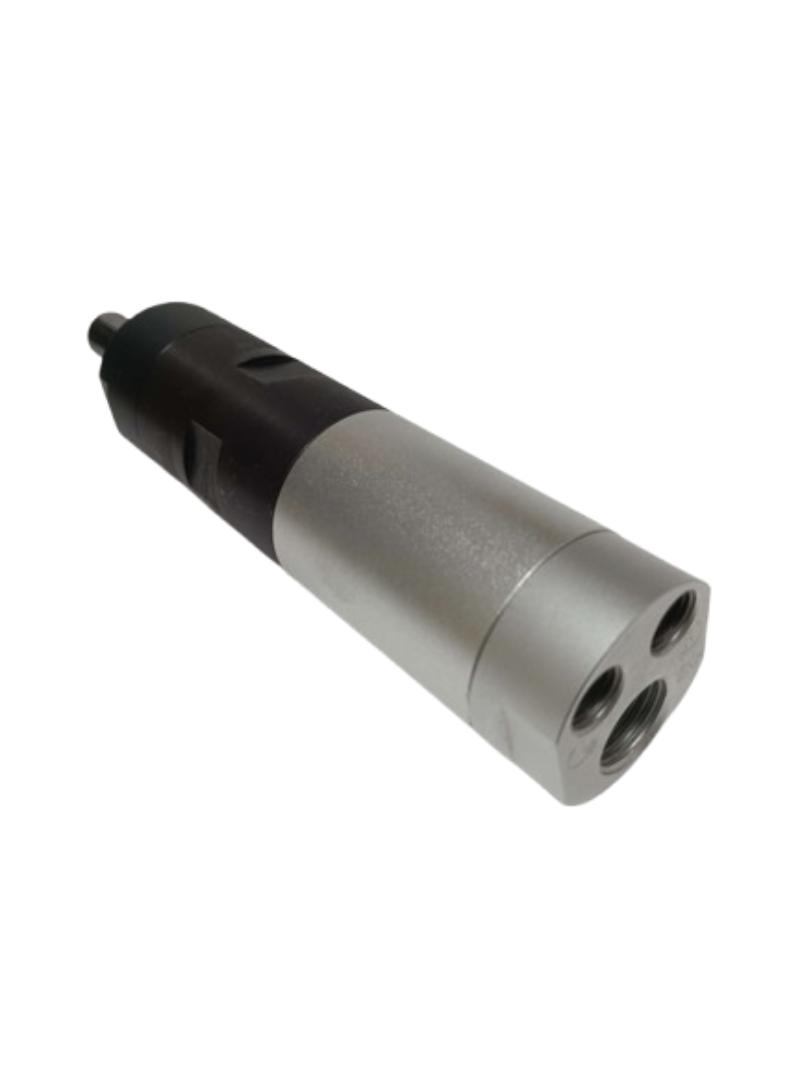

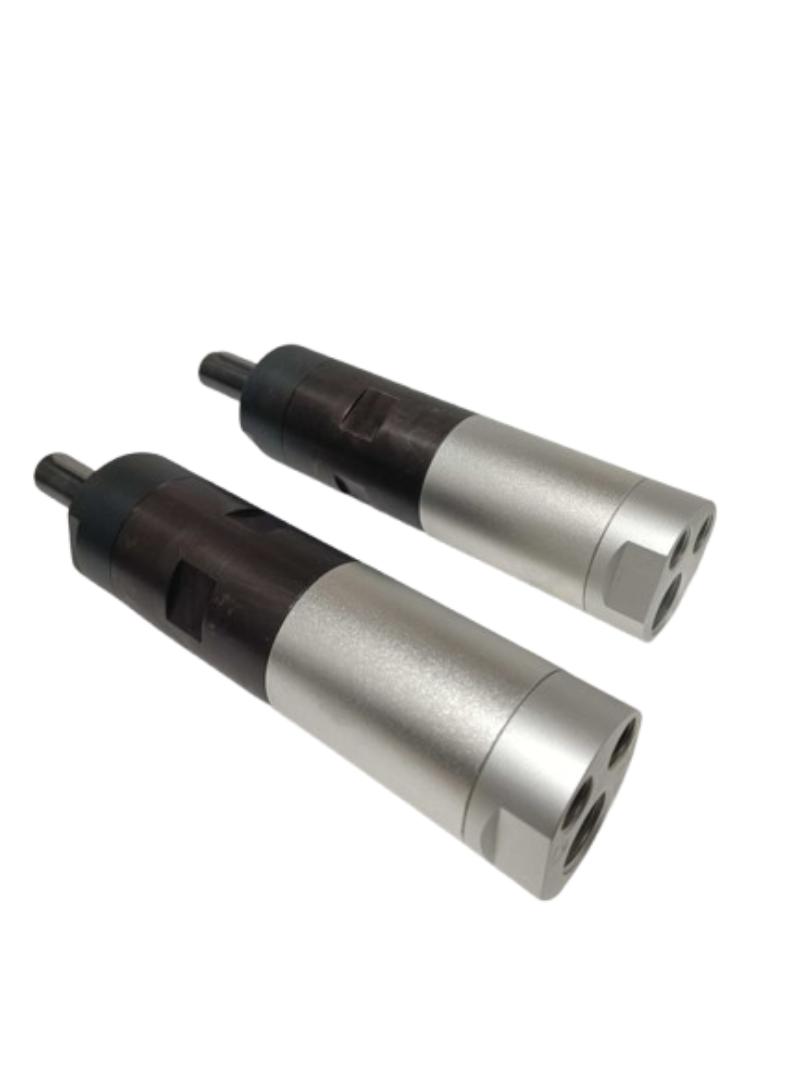

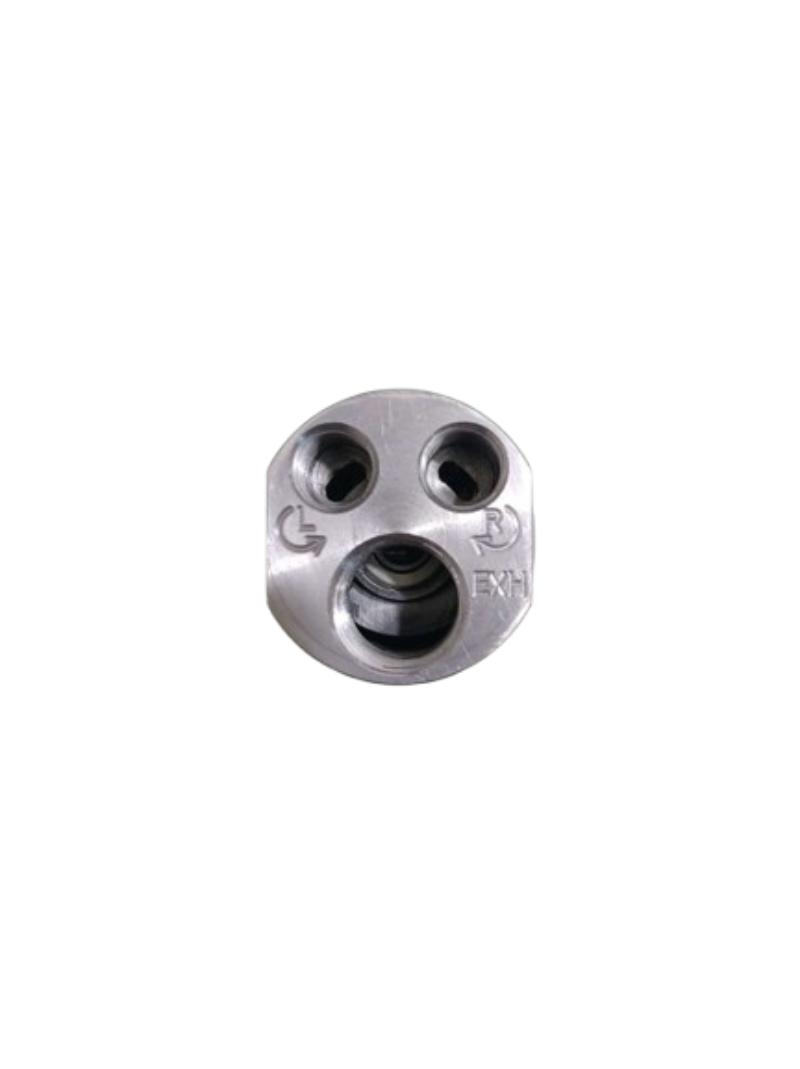

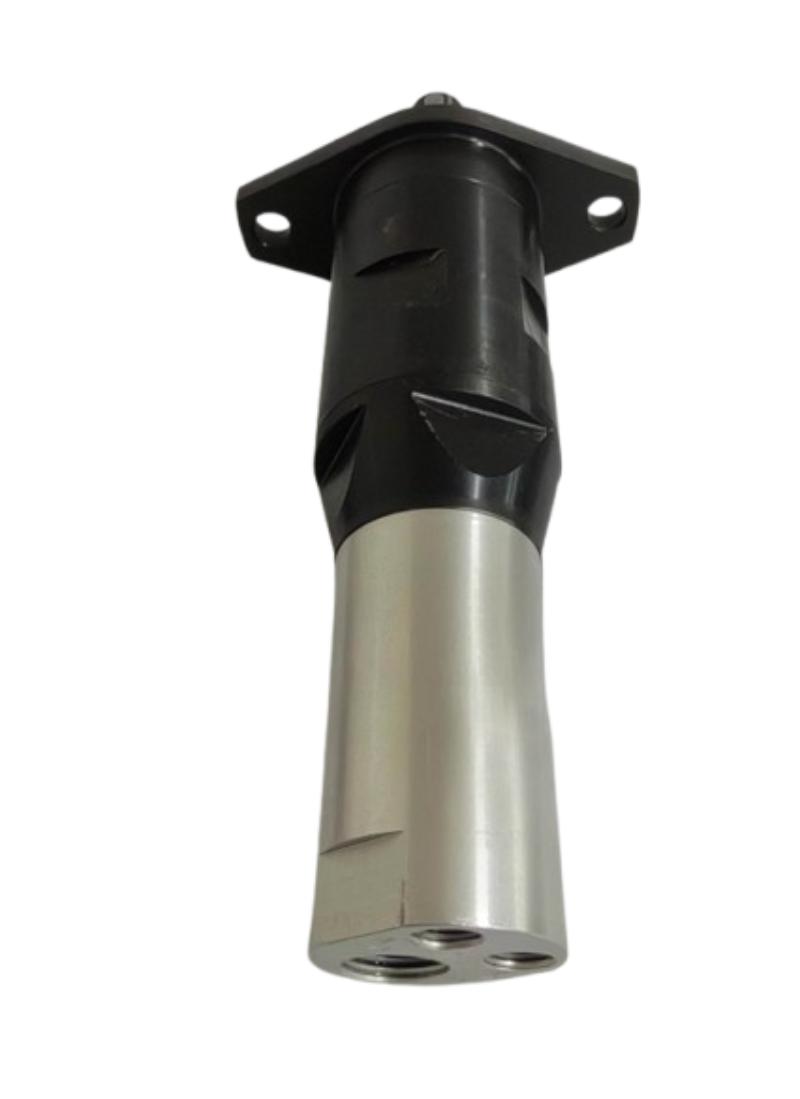

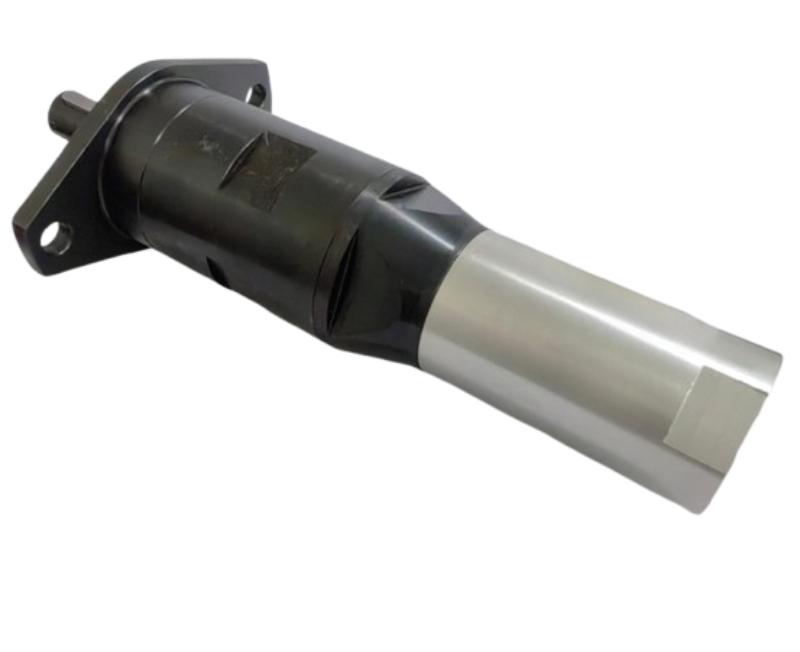

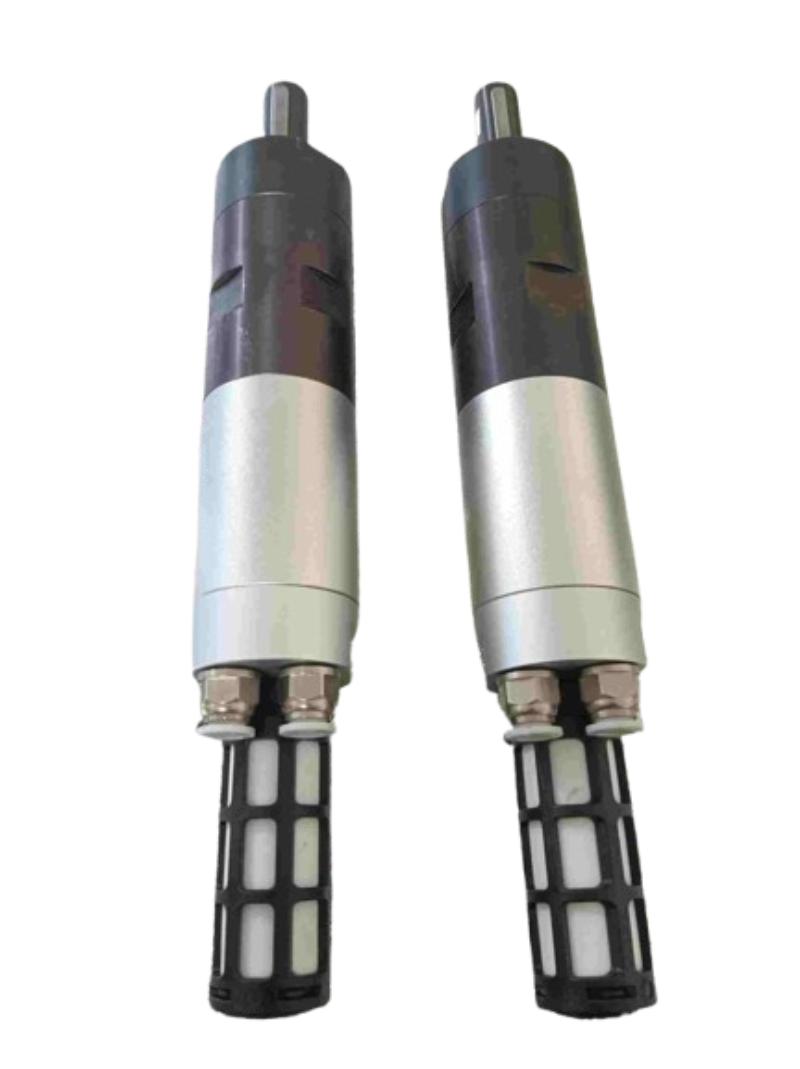

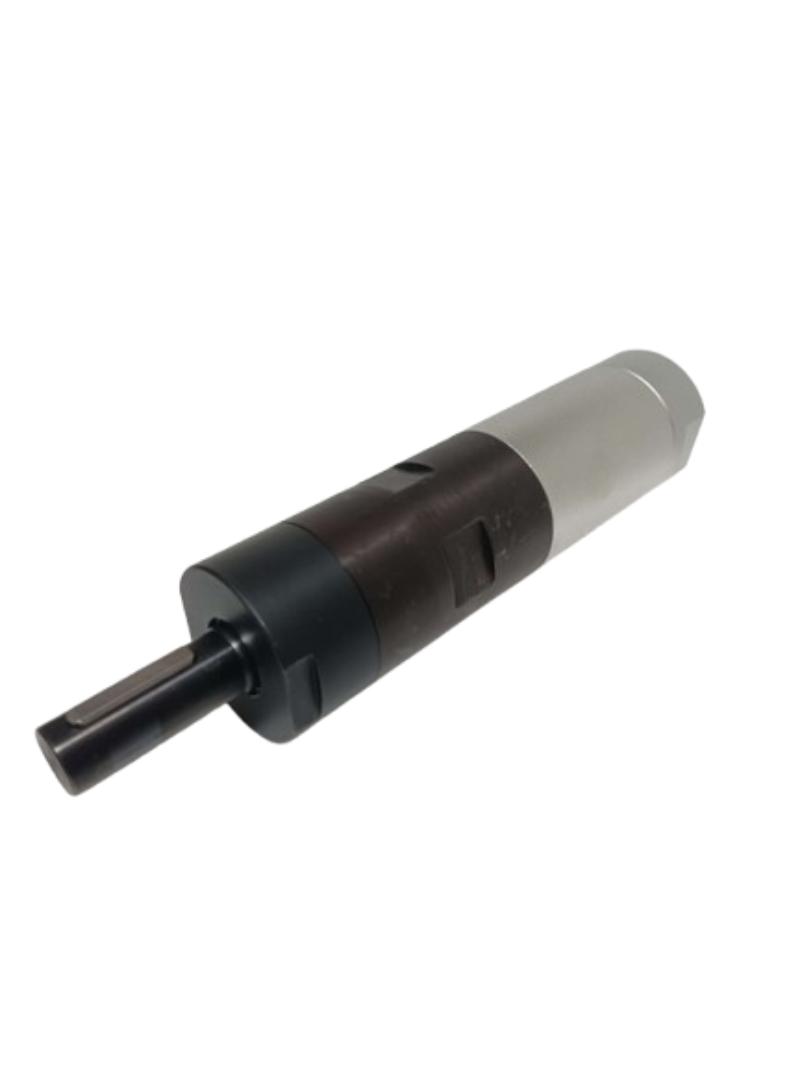

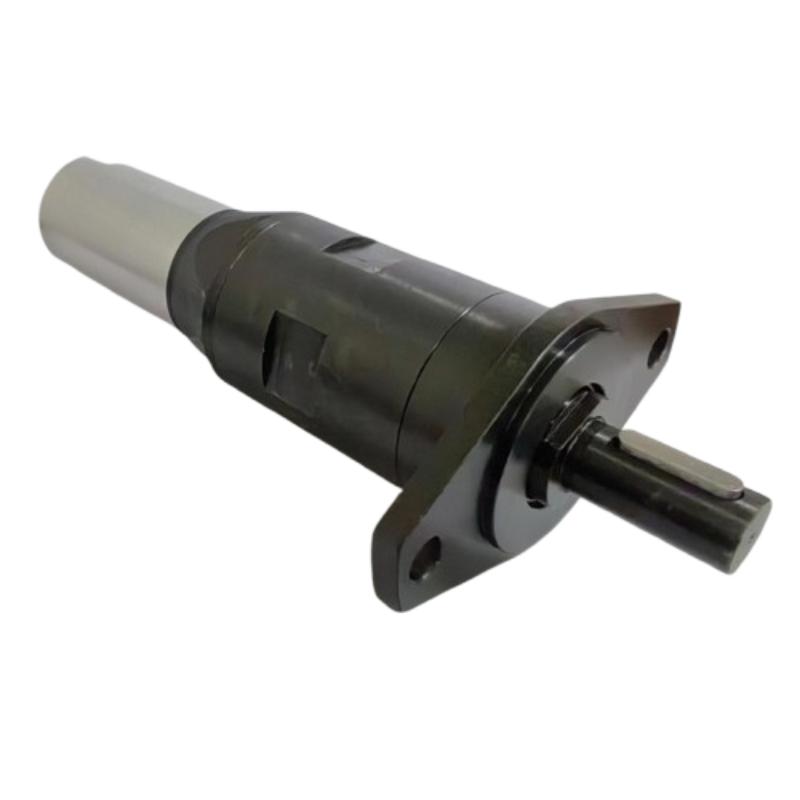

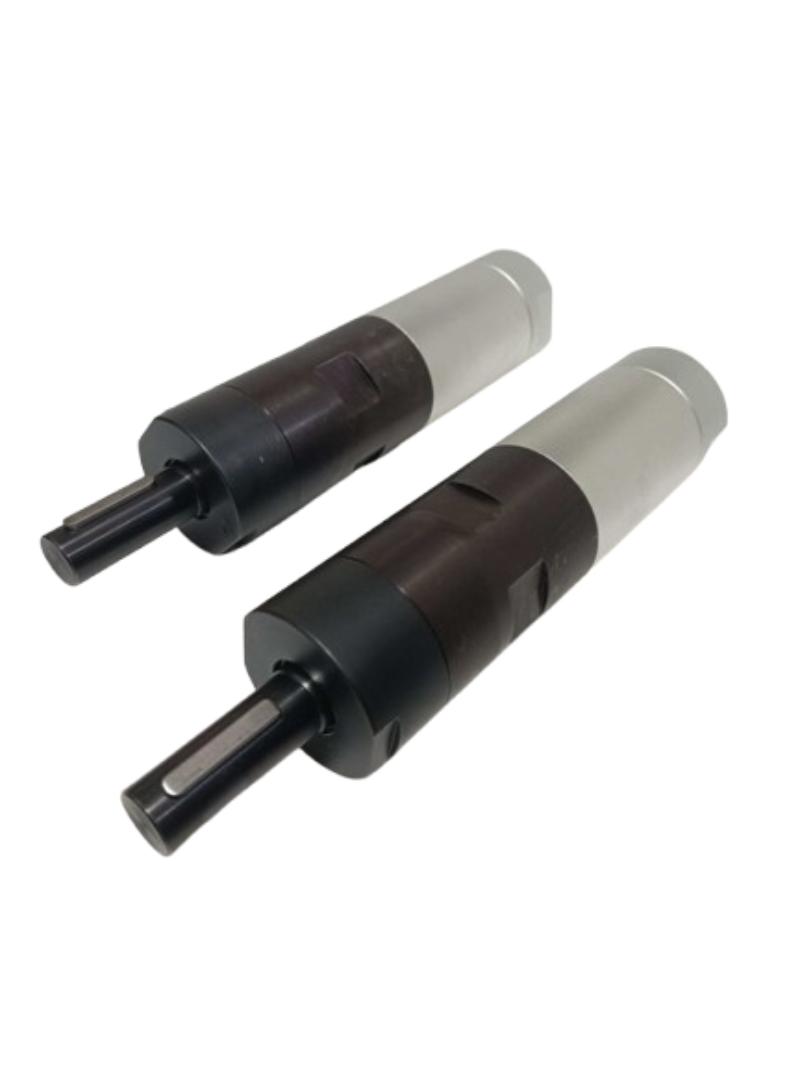

SAN MV Series Vane Air Motor - SAN MV05 AR0004 - AR170

  • SAN MV Series Vane Air Motor - SAN MV05 AR0004 - AR170
  • SAN MV Series Vane Air Motor - SAN MV05 AR0004 - AR170
  • SAN MV Series Vane Air Motor - SAN MV05 AR0004 - AR170
  • SAN MV Series Vane Air Motor - SAN MV05 AR0004 - AR170

More Information Less Information

SAN MV Series

SAN MV Series Vane Air Motor - SAN MV05 AR0004 - AR170

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments.
Specifications :
SKU MV05
max output power 0.50 kW / 0.67 hp - 0.53 kW / 0.71 hp
speed at max output 19 r/min - 8000 r/min
torque at max output 255 Nm / 188 lb-ft - 0.63 Nm / 0.46 lb-ft
min starting torque 344 Nm / 254 lb-ft - 0.85 Nm / 0.63 lb-ft
stall torque 510 Nm / 376 lb-ft - 1.3 Nm / 1.0 lb-ft
free speed 33 r/min - 14200 r/min
air consumption at max output 12.5 l/s / 27.0 cfm
net weight 4.9 kg / 10.7 lb - 1.2 kg / 2.65 lb

₹ XXXX INR + GST

Product Details

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments. Powered by compressed air, they are ideal for applications requiring variable speed, high torque, and safe operation in hazardous or explosive atmospheres.

Product Variation

Image SKU max output power speed at max output torque at max output min starting torque stall torque free speed air consumption at max output net weight Action
0.50 kW / 0.67 hp 19 r/min 255 Nm / 188 lb-ft 344 Nm / 254 lb-ft 510 Nm / 376 lb-ft 33 r/min 12.5 l/s / 27.0 cfm 4.9 kg / 10.7 lb
0.50 kW / 0.67 hp 29 r/min 162 Nm / 119 lb-ft 219 Nm / 162 lb-ft 324 Nm / 239 lb-ft 50 r/min 12.5 l/s / 27.0 cfm 4.9 kg / 10.7 lb
0.51 kW / 0.68 hp 46 r/min 106 Nm / 78 lb-ft 143 Nm / 105 lb-ft 212 Nm / 156 lb-ft 80 r/min 12.5 l/s / 27.0 cfm 2.7 kg / 5.8 lb
0.51 kW / 0.68 hp 75 r/min 64 Nm / 47 lb-ft 86 Nm / 63 lb-ft 128 Nm / 94 lb-ft 140 r/min 12.5 l/s / 27.0 cfm 2.7 kg / 5.8 lb
0.51 kW / 0.68 hp 120 r/min 41 Nm / 30 lb-ft 55 Nm / 41 lb-ft 82 Nm / 60 lb-ft 210 r/min 12.5 l/s / 27.0 cfm 2.7 kg / 5.8 lb
0.52 kW / 0.70 hp 210 r/min 23 Nm / 17 lb-ft 31 Nm / 23 lb-ft 46 Nm / 34 lb-ft 375 r/min 12.5 l/s / 27.0 cfm 1.25 kg / 2.75 lb
0.52 kW / 0.70 hp 350 r/min 14 Nm / 10.3 lb-ft 18.9 Nm / 13.9 lb-ft 28 Nm / 21 lb-ft 640 r/min 12.5 l/s / 27.0 cfm 1.25 kg / 2.75 lb
0.52 kW / 0.70 hp 550 r/min 9.0 Nm / 6.6 lb-ft 12.2 Nm / 9.0 lb-ft 18 Nm / 13.3 lb-ft 980 r/min 12.5 l/s / 27.0 cfm 1.25 kg / 2.75 lb
0.53 kW / 0.71 hp 940 r/min 5.4 Nm / 4.0 lb-ft 7.3 Nm / 5.4 lb-ft 10.8 Nm / 8.0 lb-ft 1700 r/min 12.5 l/s / 27.0 cfm 1.2 kg / 2.65 lb
0.53 kW / 0.71 hp 1570 r/min 3.2 Nm / 2.4 lb-ft 4.3 Nm / 3.2 lb-ft 6.4 Nm / 4.7 lb-ft 2800 r/min 12.5 l/s / 27.0 cfm 1.2 kg / 2.65 lb
0.53 kW / 0.71 hp 2500 r/min 2.0 Nm / 1.5 lb-ft 2.7 Nm / 2.0 lb-ft 4 Nm / 3.0 lb-ft 4500 r/min 12.5 l/s / 27.0 cfm 1.2 kg / 2.65 lb
0.53 kW / 0.71 hp 8000 r/min 0.63 Nm / 0.46 lb-ft 0.85 Nm / 0.63 lb-ft 1.3 Nm / 1.0 lb-ft 14200 r/min 12.5 l/s / 27.0 cfm 1.2 kg / 2.65 lb
