SAN MV Series

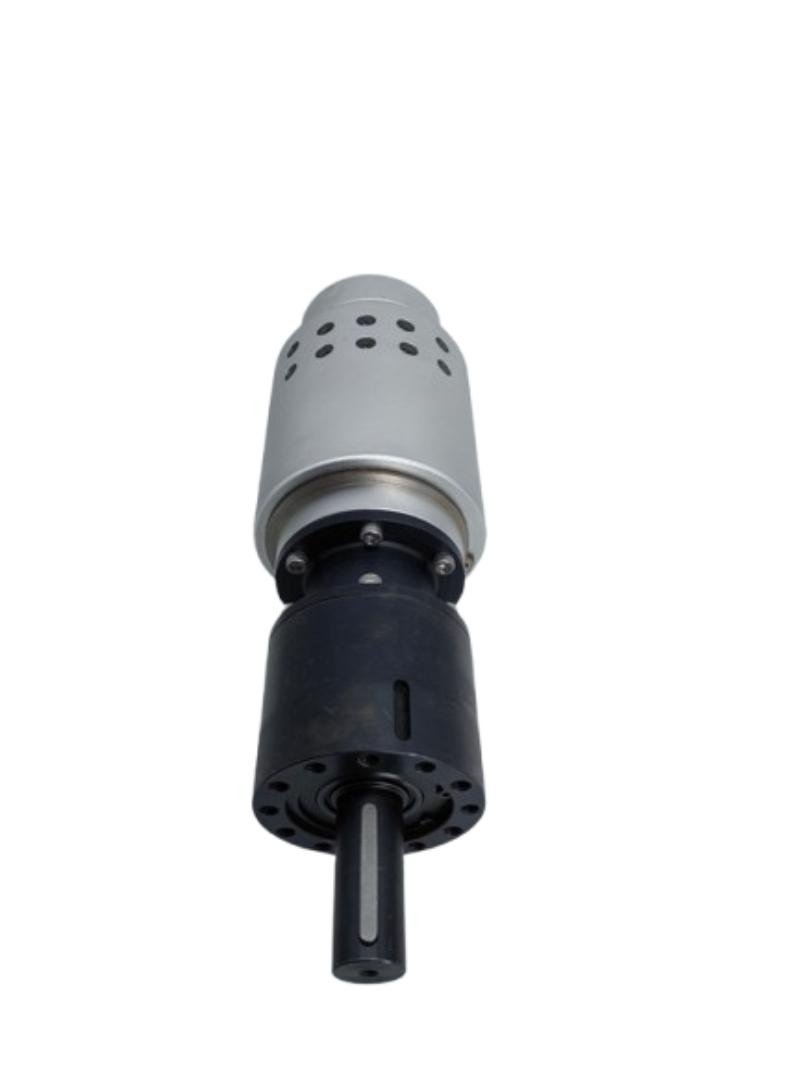

SAN MV Series Vane Air Motor - SAN MV24 AR0010 - AR024

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments.
Specifications :
SKU MV24
max output power 2.35 kW / 3.15 hp - 2.40 kW / 3.22 hp
speed at max output 56 r/min - 1280 r/min
torque at max output 410 Nm / 302.4 lb-ft - 18 Nm / 13.3 lb-ft
min starting torque 615 Nm / 453.6 lb-ft - 24 Nm / 18 lb-ft
stall torque 820 Nm / 604.8 lb-ft - 36 Nm / 27 lb-ft
free speed 100 r/min - 2300 r/min
air consumption at max output 52 l/s / 110 cfm
net weight 8.7 kg / 19.1 lb - 8.4 kg / 18.5 lb

₹ XXXX INR + GST

Product Details

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments. Powered by compressed air, they are ideal for applications requiring variable speed, high torque, and safe operation in hazardous or explosive atmospheres.


Product Variation

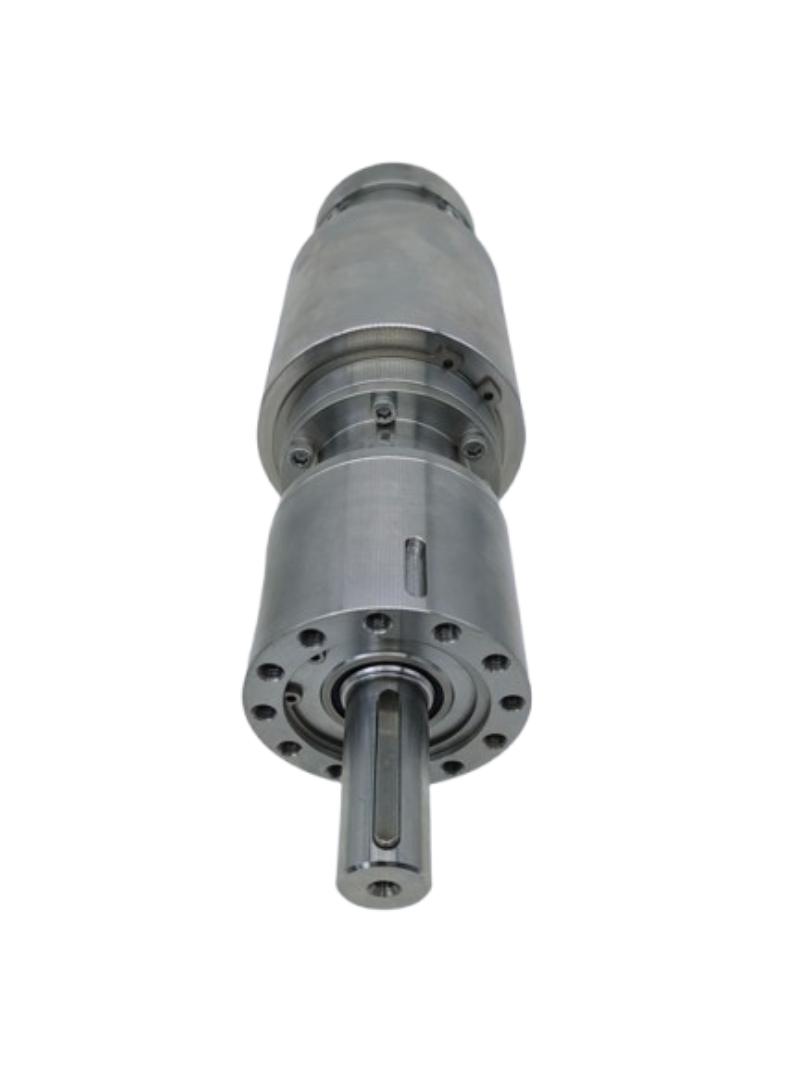

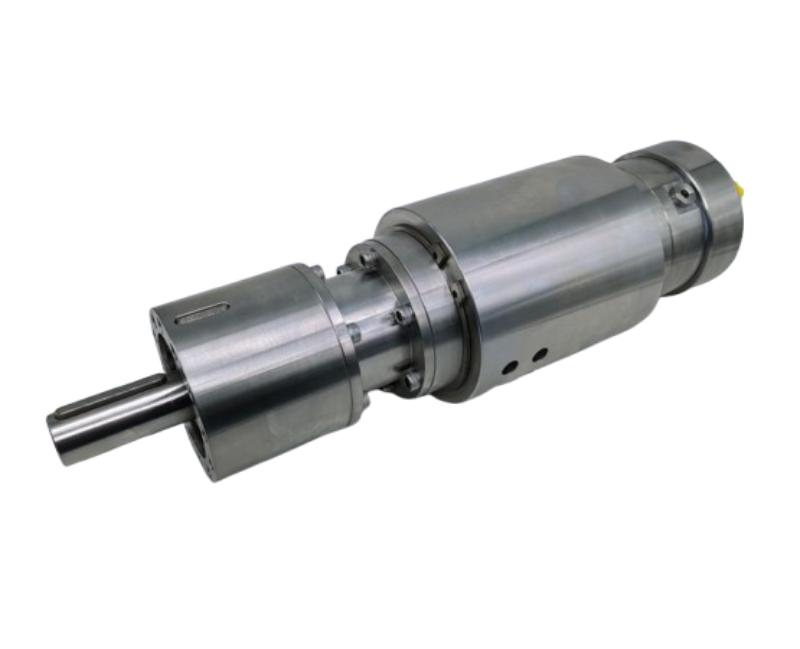

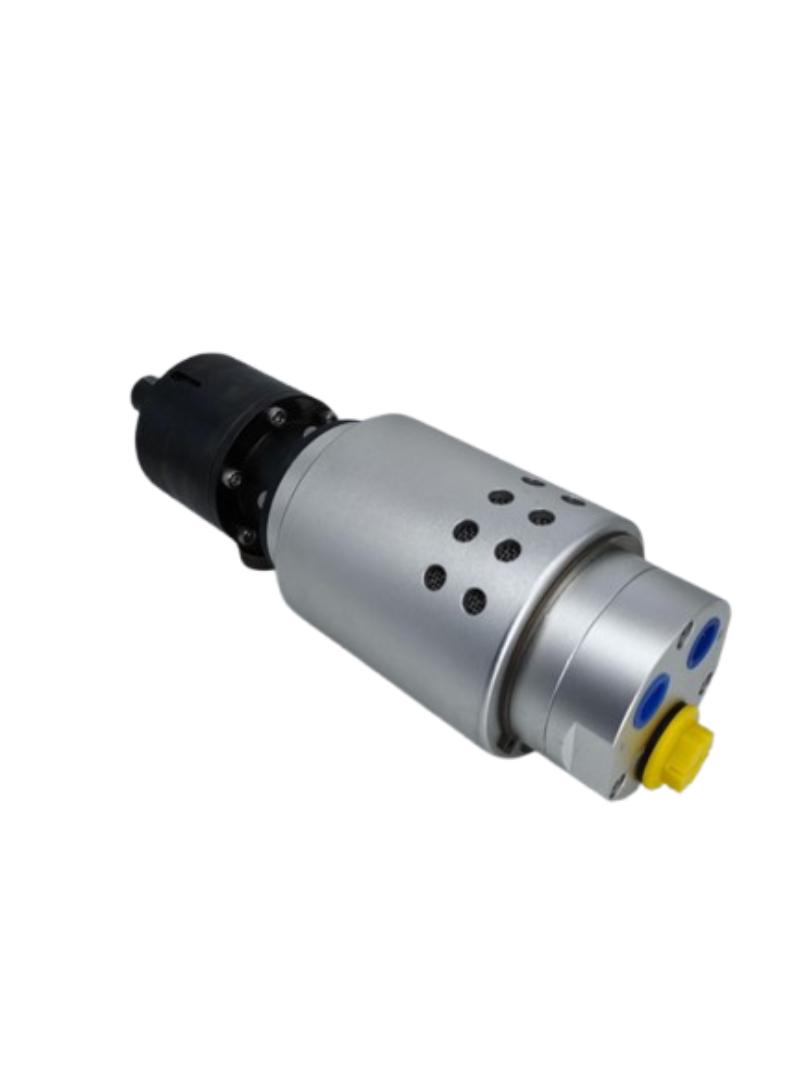

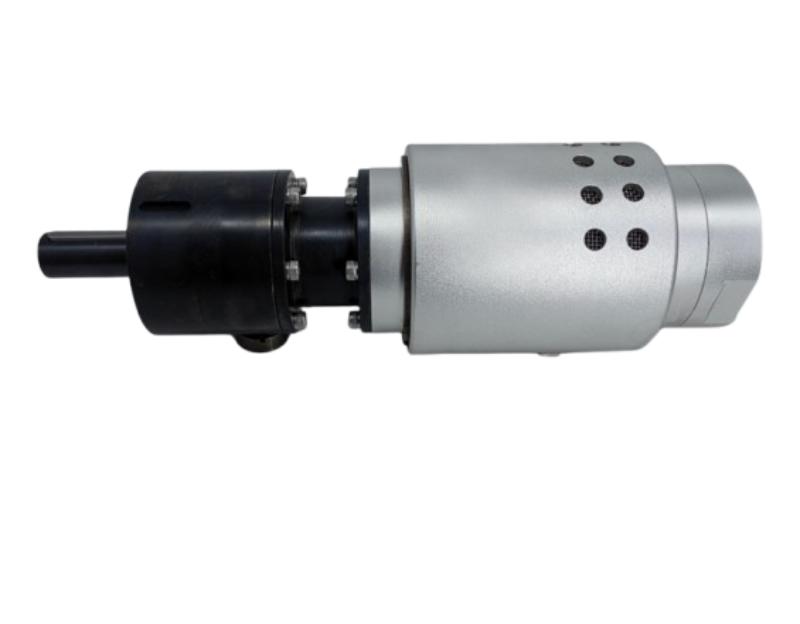

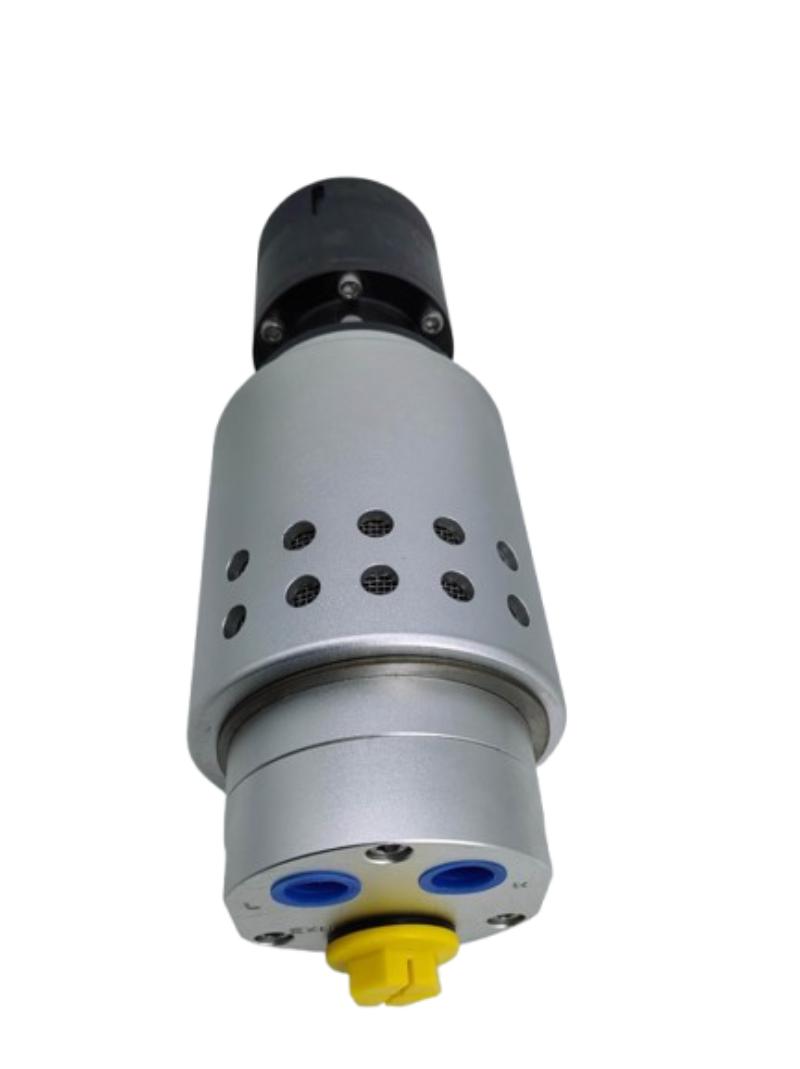

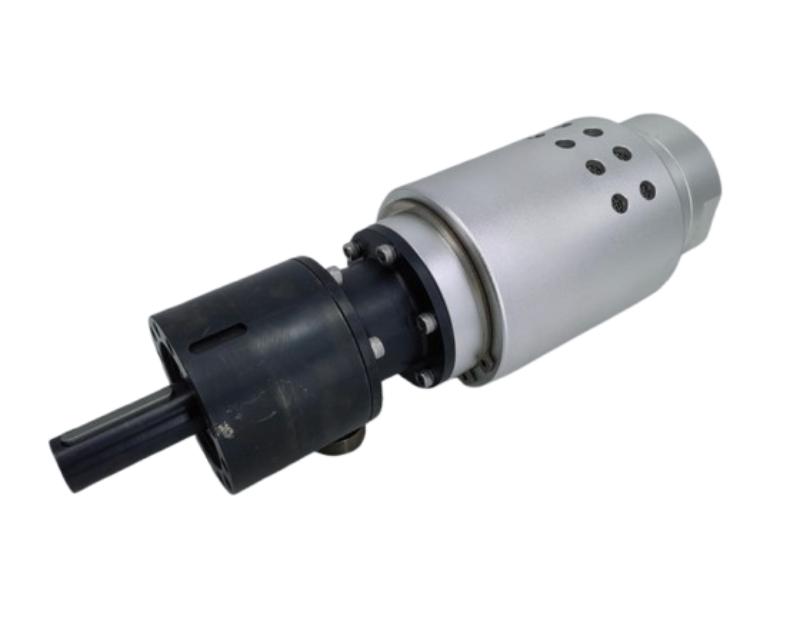

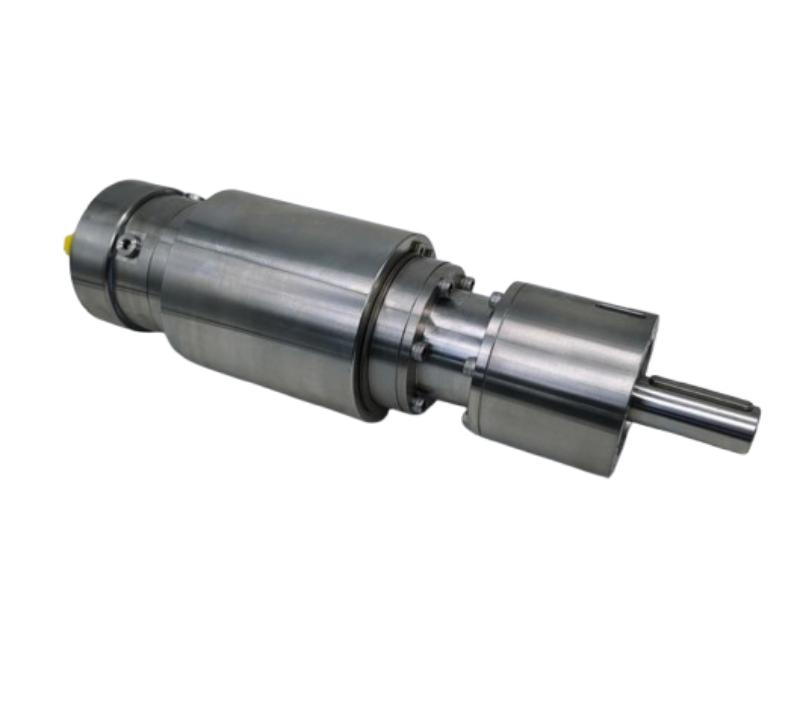

Image SKU max output power speed at max output torque at max output min starting torque stall torque free speed air consumption at max output net weight Action
2.35 kW / 3.15 hp 56 r/min 410 Nm / 302.4 lb-ft 615 Nm / 453.6 lb-ft 820 Nm / 604.8 lb-ft 100 r/min 52 l/s / 110 cfm 8.7 kg / 19.1 lb
2.35 kW / 3.15 hp 80 r/min 274 Nm / 202 lb-ft 374 Nm / 276 lb-ft 548 Nm / 404 lb-ft 155 r/min 52 l/s / 110 cfm 8.7 kg / 19.1 lb
2.35 kW / 3.15 hp 95 r/min 242 Nm / 178 lb-ft 331 Nm / 244 lb-ft 484 Nm / 357 lb-ft 170 r/min 52 l/s / 110 cfm 8.7 kg / 19.1 lb
2.38 kW / 3.19 hp 170 r/min 137 Nm / 101 lb-ft 188 Nm / 139 lb-ft 274 Nm / 202 lb-ft 310 r/min 52 l/s / 110 cfm 8.4 kg / 18.5 lb
2.38 kW / 3.19 hp 220 r/min 102 Nm / 75 lb-ft 139 Nm / 103 lb-ft 204 Nm / 150 lb-ft 420 r/min 52 l/s / 110 cfm 8.4 kg / 18.5 lb
2.38 kW / 3.19 hp 320 r/min 70 Nm / 52 lb-ft 96 Nm / 71 lb-ft 140 Nm / 103 lb-ft 600 r/min 52 l/s / 110 cfm 8.4 kg / 18.5 lb
2.38 kW / 3.19 hp 370 r/min 62 Nm / 46 lb-ft 84 Nm / 62 lb-ft 124 Nm / 91 lb-ft 680 r/min 52 l/s / 110 cfm 8.4 kg / 18.5 lb
2.40 kW / 3.22 hp 650 r/min 47 Nm / 35 lb-ft 63.5 Nm / 47 lb-ft 94.5 Nm / 70 lb-ft 1300 r/min 52 l/s / 110 cfm 8.4 kg / 18.5 lb
2.40 kW / 3.22 hp 880 r/min 35 Nm / 26 lb-ft 47 Nm / 35 lb-ft 70 Nm / 52 lb-ft 1700 r/min 52 l/s / 110 cfm 8.4 kg / 18.5 lb
2.40 kW / 3.22 hp 1280 r/min 18 Nm / 13.3 lb-ft 24 Nm / 18 lb-ft 36 Nm / 27 lb-ft 2300 r/min 52 l/s / 110 cfm 8.4 kg / 18.5 lb
