SAN MV Series

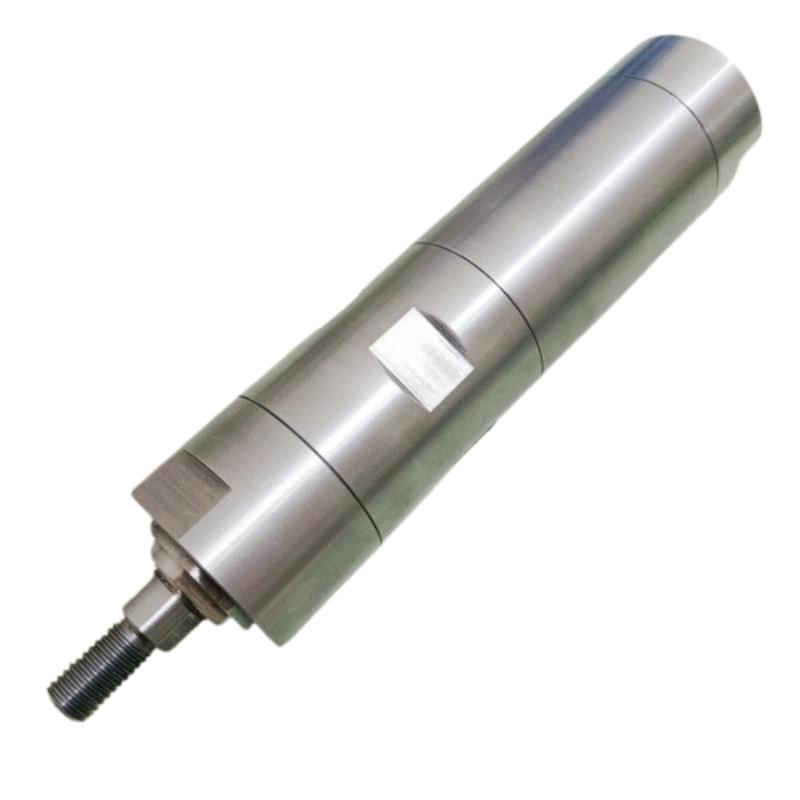

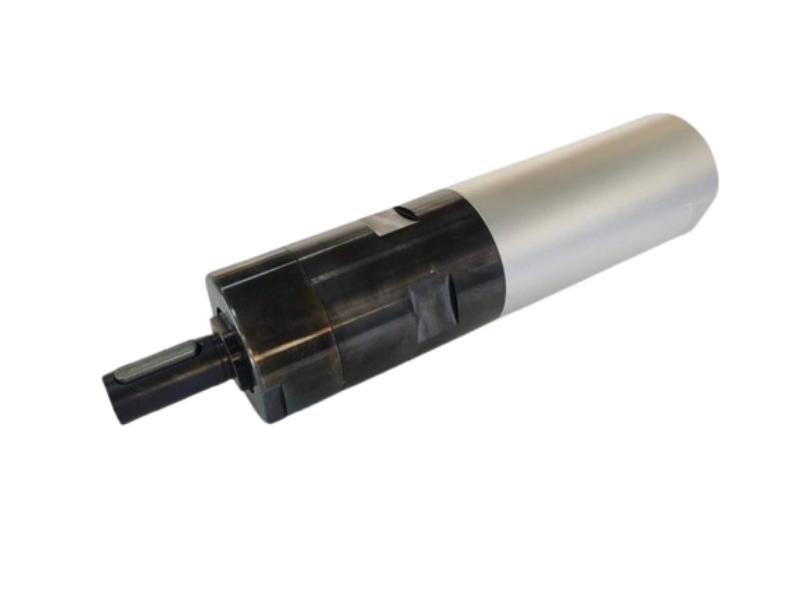

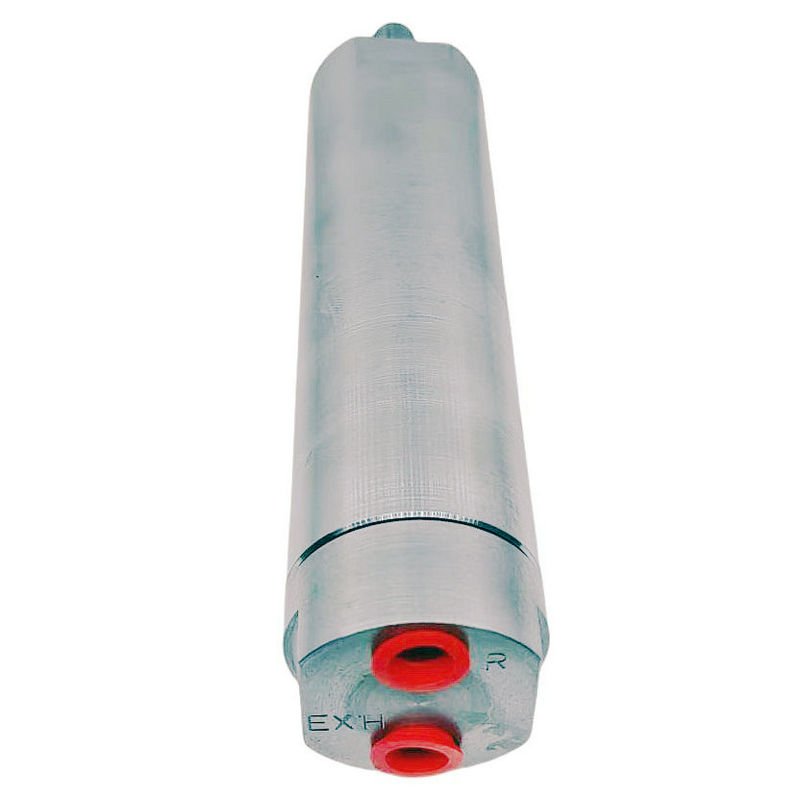

SAN MV Series Vane Air Motor - SAN MV15 AR0009 - AR130

  • SAN MV Series Vane Air Motor - SAN MV15 AR0009 - AR130
  • SAN MV Series Vane Air Motor - SAN MV15 AR0009 - AR130
  • SAN MV Series Vane Air Motor - SAN MV15 AR0009 - AR130

More Information Less Information

SAN MV Series

SAN MV Series Vane Air Motor - SAN MV15 AR0009 - AR130

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments.
Specifications :
SKU MV15
max output power 1.41 kW / 1.89 hp - 1.46 kW / 1.96 hp
speed at max output 50 r/min - 7500 r/min
torque at max output 259 Nm / 191 lb-ft - 1.9 Nm / 1.4 lb-ft
min starting torque 337 Nm / 249 lb-ft - 2.4 Nm / 1.8 lb-ft
stall torque 518 Nm / 382 lb-ft - 3.8 Nm / 2.8 lb-ft
free speed 90 r/min - 13500 r/min
air consumption at max output 31 l/s / 66 cfm
net weight 5.1 kg / 11.1 lb - 2.8 kg / 6.2 lb

₹ XXXX INR + GST

Product Details

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments. Powered by compressed air, they are ideal for applications requiring variable speed, high torque, and safe operation in hazardous or explosive atmospheres.



Product Variation

Image SKU max output power speed at max output torque at max output min starting torque stall torque free speed air consumption at max output net weight Action
1.41 kW / 1.89 hp 50 r/min 259 Nm / 191 lb-ft 337 Nm / 249 lb-ft 518 Nm / 382 lb-ft 90 r/min 31 l/s / 66 cfm 5.1 kg / 11.1 lb
1.41 kW / 1.89 hp 70 r/min 191 Nm / 141 lb-ft 249 Nm / 184 lb-ft 382 Nm / 282 lb-ft 120 r/min 31 l/s / 66 cfm 5.1 kg / 11.1 lb
1.41 kW / 1.89 hp 115 r/min 117 Nm / 86 lb-ft 151 Nm / 111 lb-ft 233 Nm / 172 lb-ft 200 r/min 31 l/s / 66 cfm 5.1 kg / 11.1 lb
1.43 kW / 1.92 hp 210 r/min 64 Nm / 47 lb-ft 84 Nm / 62 lb-ft 128 Nm / 94 lb-ft 370 r/min 31 l/s / 66 cfm 2.9 kg / 6.4 lb
1.43 kW / 1.92 hp 290 r/min 48 Nm / 35 lb-ft 62 Nm / 46 lb-ft 96 Nm / 71 lb-ft 500 r/min 31 l/s / 66 cfm 2.9 kg / 6.4 lb
1.43 kW / 1.92 hp 470 r/min 29 Nm / 21 lb-ft 36.5 Nm / 27 lb-ft 58 Nm / 43 lb-ft 830 r/min 31 l/s / 66 cfm 2.9 kg / 6.4 lb
1.46 kW / 1.96 hp 970 r/min 14.3 Nm / 10.5 lb-ft 18.5 Nm / 13.6 lb-ft 29 Nm / 21 lb-ft 1750 r/min 31 l/s / 66 cfm 2.8 kg / 6.2 lb
1.46 kW / 1.96 hp 1320 r/min 10.5 Nm / 7.7 lb-ft 13.5 Nm / 10.0 lb-ft 21 Nm / 15.5 lb-ft 2400 r/min 31 l/s / 66 cfm 2.8 kg / 6.2 lb
1.46 kW / 1.96 hp 2200 r/min 6.4 Nm / 4.7 lb-ft 8.3 Nm / 6.1 lb-ft 12.8 Nm / 9.4 lb-ft 3900 r/min 31 l/s / 66 cfm 2.8 kg / 6.2 lb
1.46 kW / 1.96 hp 7500 r/min 1.9 Nm / 1.4 lb-ft 2.4 Nm / 1.8 lb-ft 3.8 Nm / 2.8 lb-ft 13500 r/min 31 l/s / 66 cfm 2.8 kg / 6.2 lb
