SAN MV Series

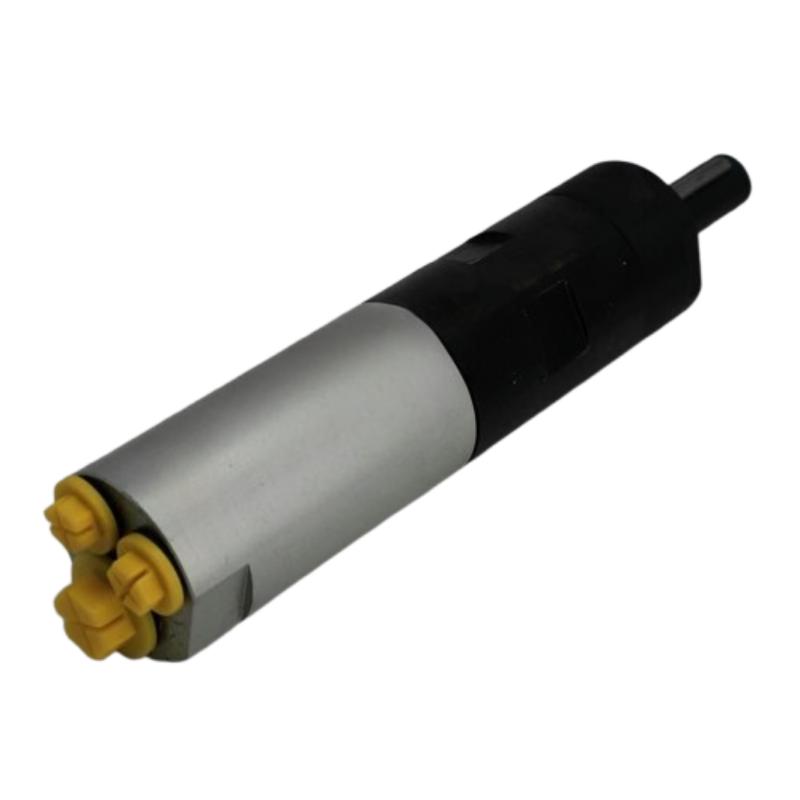

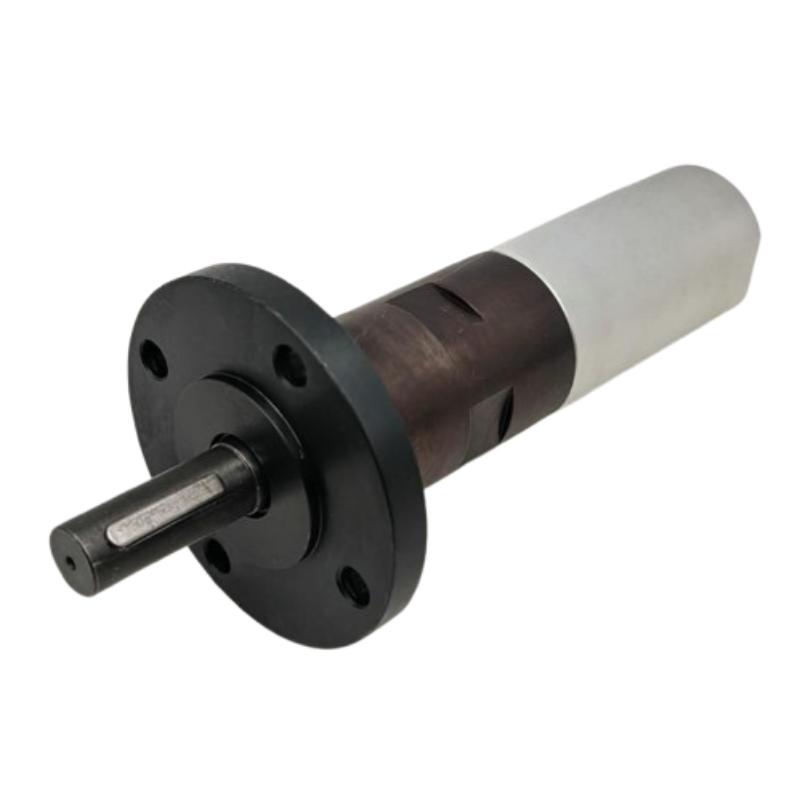

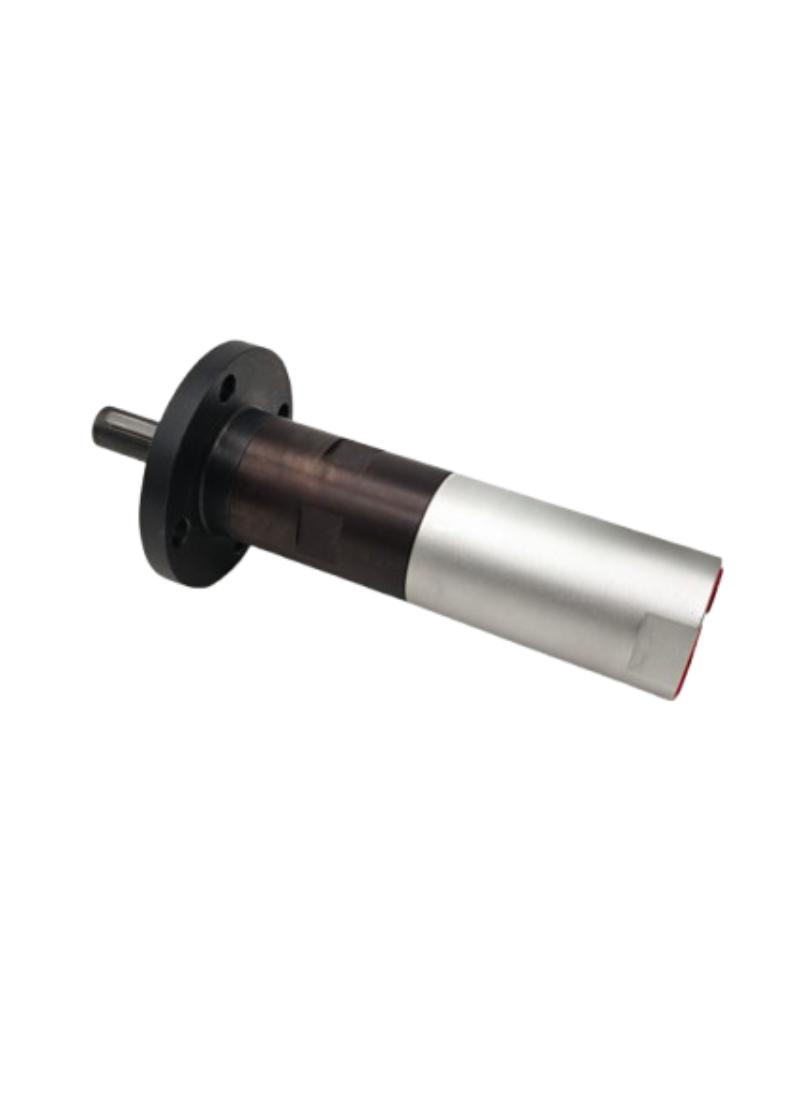

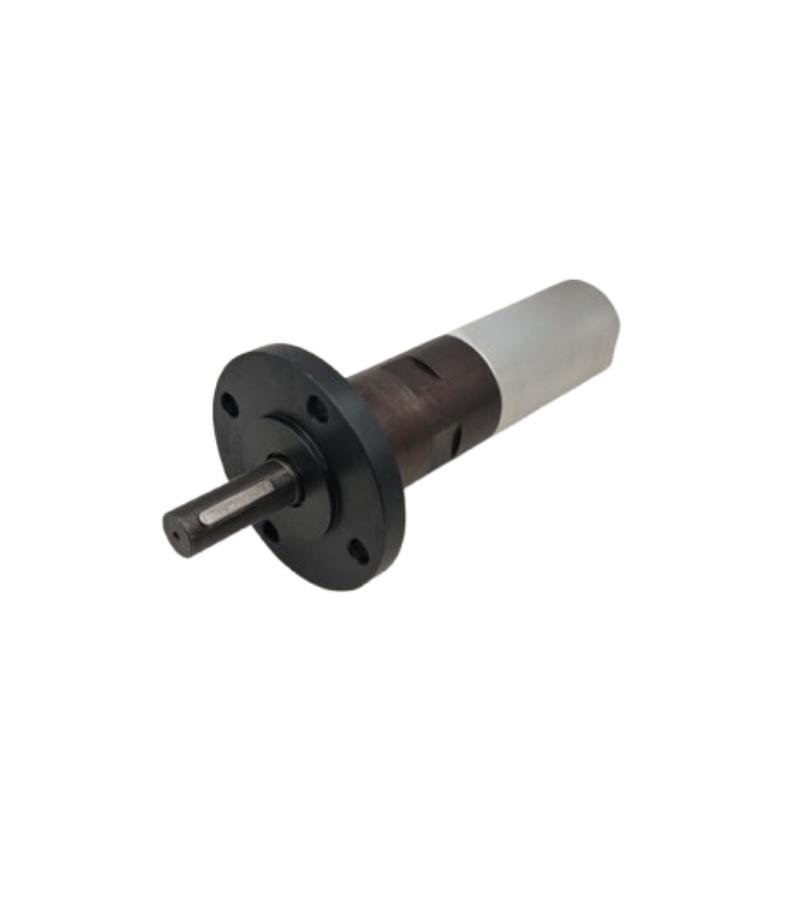

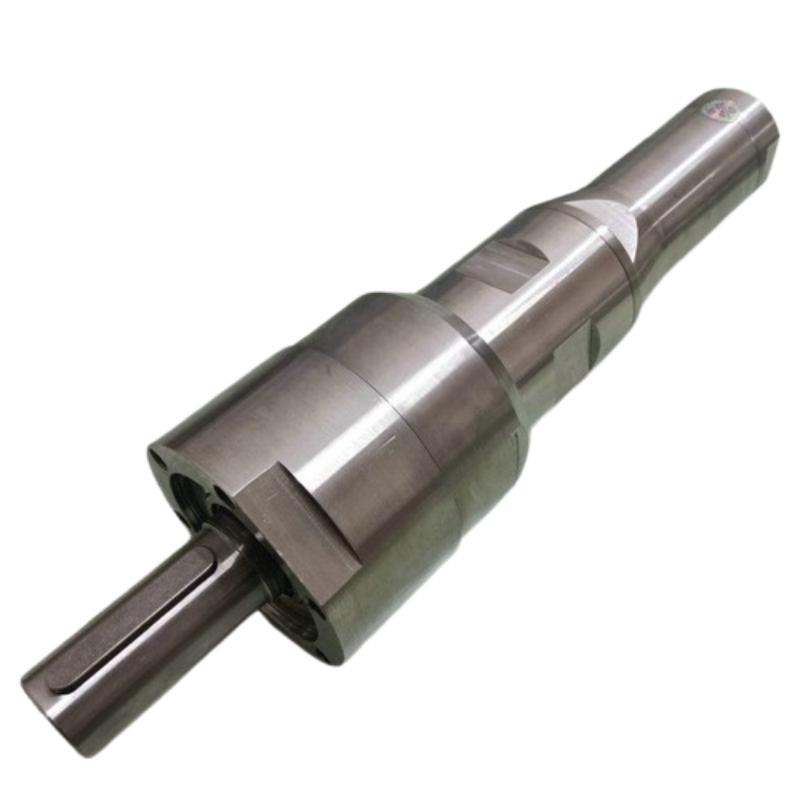

SAN MV Series Vane Air Motor - SAN MV06 AR0004 - AR170

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments.
Specifications :
SKU MV06
max output power 0.59 kW / 0.79 hp - 0.63 kW / 0.84 hp
speed at max output 20 r/min - 8500 r/min
torque at max output 287 Nm / 212 lb-ft - 0.71 Nm / 0.52 lb-ft
min starting torque 388 Nm / 286 lb-ft - 0.96 Nm / 0.71 lb-ft
stall torque 574 Nm / 423 lb-ft - 1.42 Nm / 1.0 lb-ft
free speed 35 r/min - 15800 r/min
air consumption at max output 14.0 l/s / 29.7 cfm
net weight 4.9 kg / 10.8 lb - 1.2 kg / 2.65 lb

₹ XXXX INR + GST

Product Details

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments. Powered by compressed air, they are ideal for applications requiring variable speed, high torque, and safe operation in hazardous or explosive atmospheres.



Product Variation

Image SKU max output power speed at max output torque at max output min starting torque stall torque free speed air consumption at max output net weight Action
0.59 kW / 0.79 hp 20 r/min 287 Nm / 212 lb-ft 388 Nm / 286 lb-ft 574 Nm / 423 lb-ft 35 r/min 14.0 l/s / 29.7 cfm 4.9 kg / 10.8 lb
0.59 kW / 0.79 hp 31 r/min 183 Nm / 135 lb-ft 247 Nm / 182 lb-ft 366 Nm / 270 lb-ft 55 r/min 14.0 l/s / 29.7 cfm 4.9 kg / 10.8 lb
0.60 kW / 0.80 hp 49 r/min 119 Nm / 88 lb-ft 161 Nm / 119 lb-ft 238 Nm / 175 lb-ft 90 r/min 14.0 l/s / 29.7 cfm 2.7 kg / 6.0 lb
0.60 kW / 0.80 hp 80 r/min 72 Nm / 53 lb-ft 96 Nm / 71 lb-ft 143 Nm / 105 lb-ft 150 r/min 14.0 l/s / 29.7 cfm 2.7 kg / 6.0 lb
0.60 kW / 0.80 hp 125 r/min 46 Nm / 34 lb-ft 61 Nm / 45 lb-ft 91 Nm / 67 lb-ft 230 r/min 14.0 l/s / 29.7 cfm 2.7 kg / 6.0 lb
0.62 kW / 0.83 hp 220 r/min 26 Nm / 19.5 lb-ft 35 Nm / 26 lb-ft 53 Nm / 39 lb-ft 420 r/min 14.0 l/s / 29.7 cfm 1.3 kg / 2.9 lb
0.62 kW / 0.83 hp 370 r/min 15.8 Nm / 11.7 lb-ft 21 Nm / 15.5 lb-ft 32 Nm / 23.3 lb-ft 700 r/min 14.0 l/s / 29.7 cfm 1.3 kg / 2.9 lb
0.62 kW / 0.83 hp 590 r/min 10.1 Nm / 7.4 lb-ft 13.5 Nm / 10 lb-ft 20 Nm / 14.9 lb-ft 1100 r/min 14.0 l/s / 29.7 cfm 1.3 kg / 2.9 lb
0.63 kW / 0.84 hp 1000 r/min 6.0 Nm / 4.4 lb-ft 8.1 Nm / 6.0 lb-ft 12 Nm / 8.9 lb-ft 1900 r/min 14.0 l/s / 29.7 cfm 1.2 kg / 2.65 lb
0.63 kW / 0.84 hp 1670 r/min 3.6 Nm / 2.7 lb-ft 4.9 Nm / 3.6 lb-ft 7.2 Nm / 5.3 lb-ft 3200 r/min 14.0 l/s / 29.7 cfm 1.2 kg / 2.65 lb
0.63 kW / 0.84 hp 2600 r/min 2.3 Nm / 1.7 lb-ft 3.1 Nm / 2.3 lb-ft 4.6 Nm / 3.4 lb-ft 5000 r/min 14.0 l/s / 29.7 cfm 1.2 kg / 2.65 lb
0.63 kW / 0.84 hp 8500 r/min 0.71 Nm / 0.52 lb-ft 0.96 Nm / 0.71 lb-ft 1.42 Nm / 1.0 lb-ft 15800 r/min 14.0 l/s / 29.7 cfm 1.2 kg / 2.65 lb
