SAN MV Series

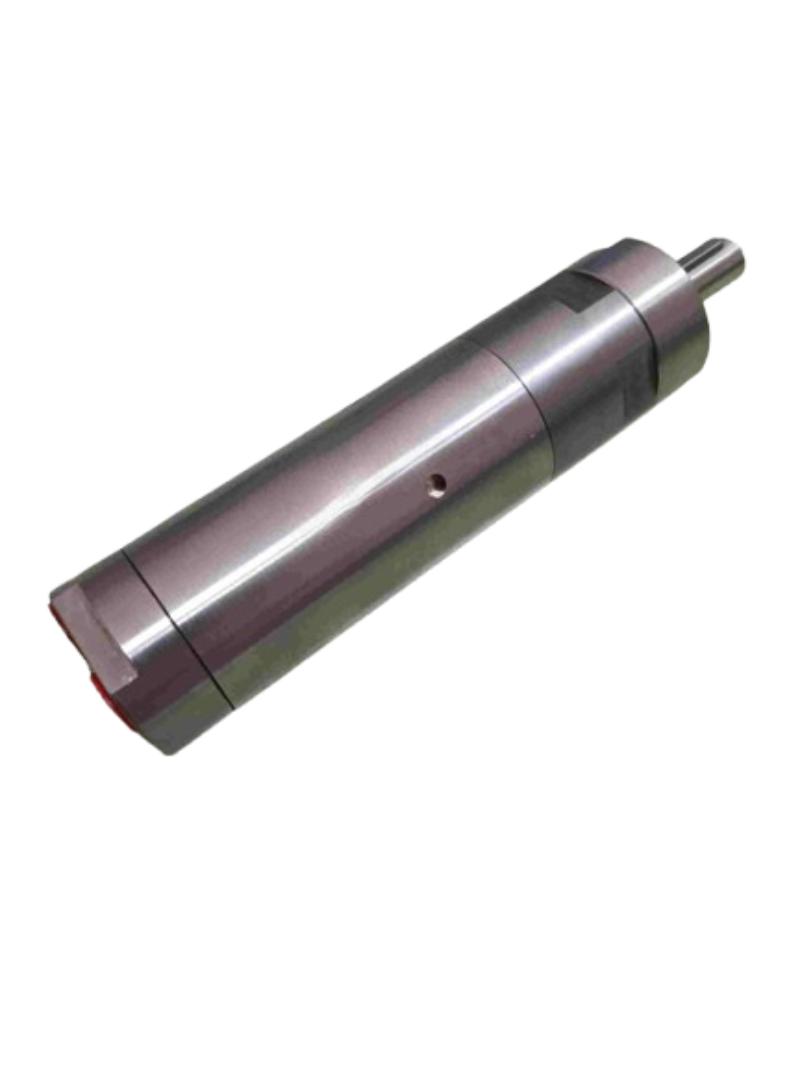

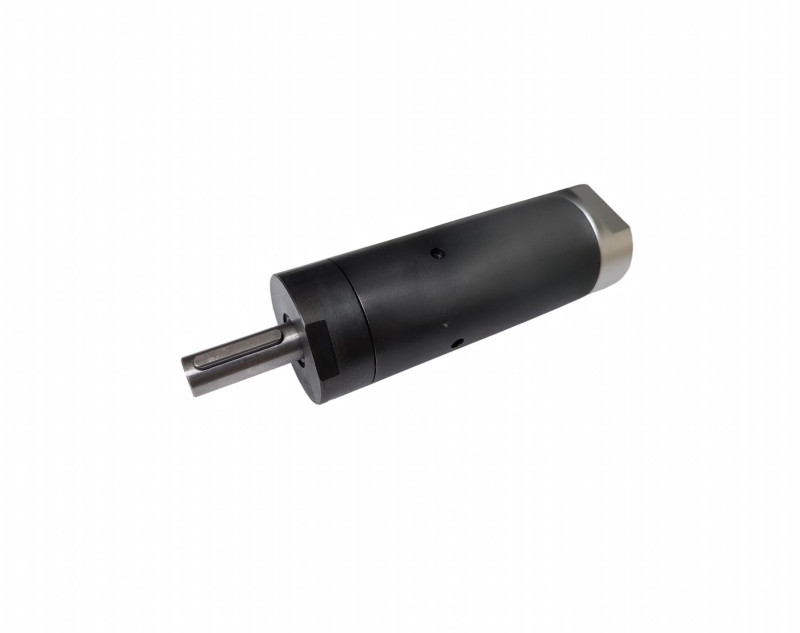

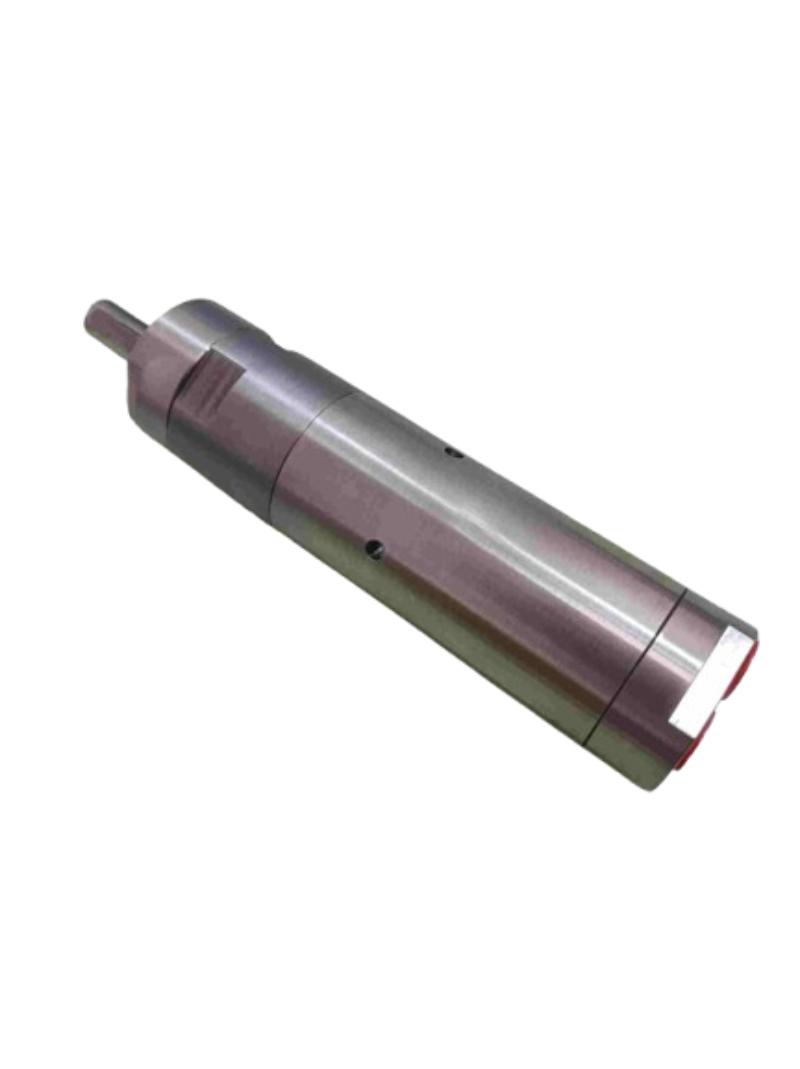

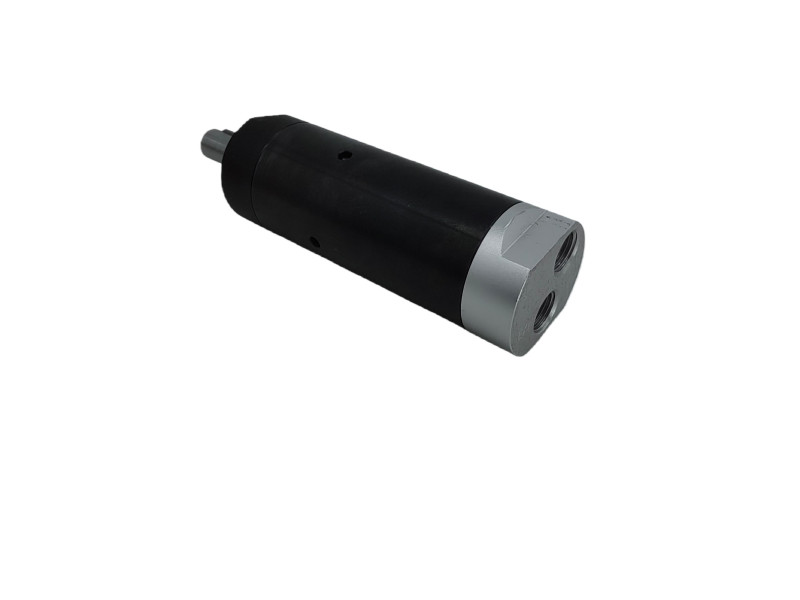

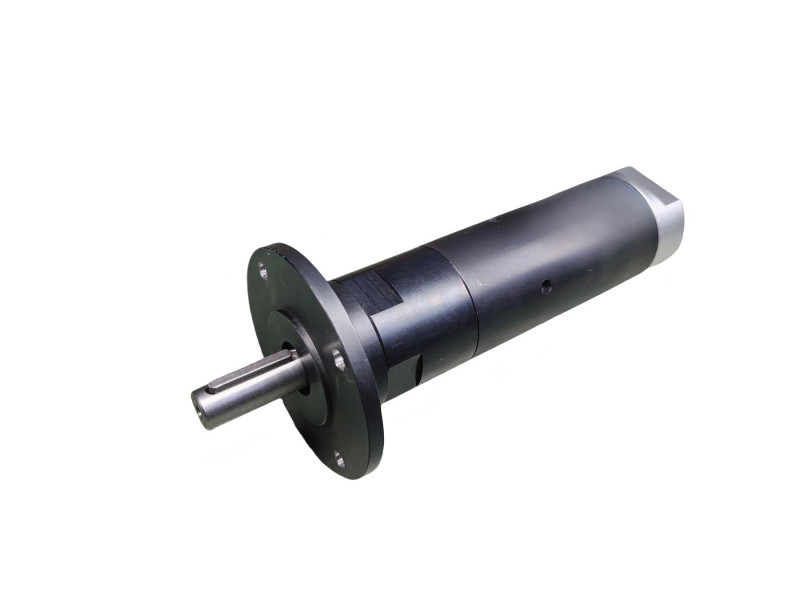

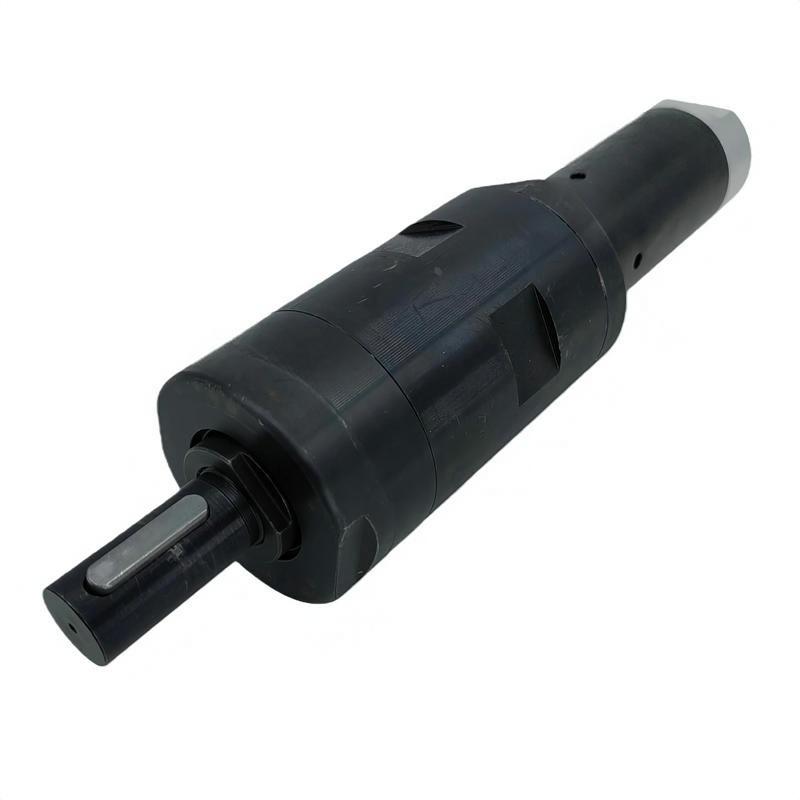

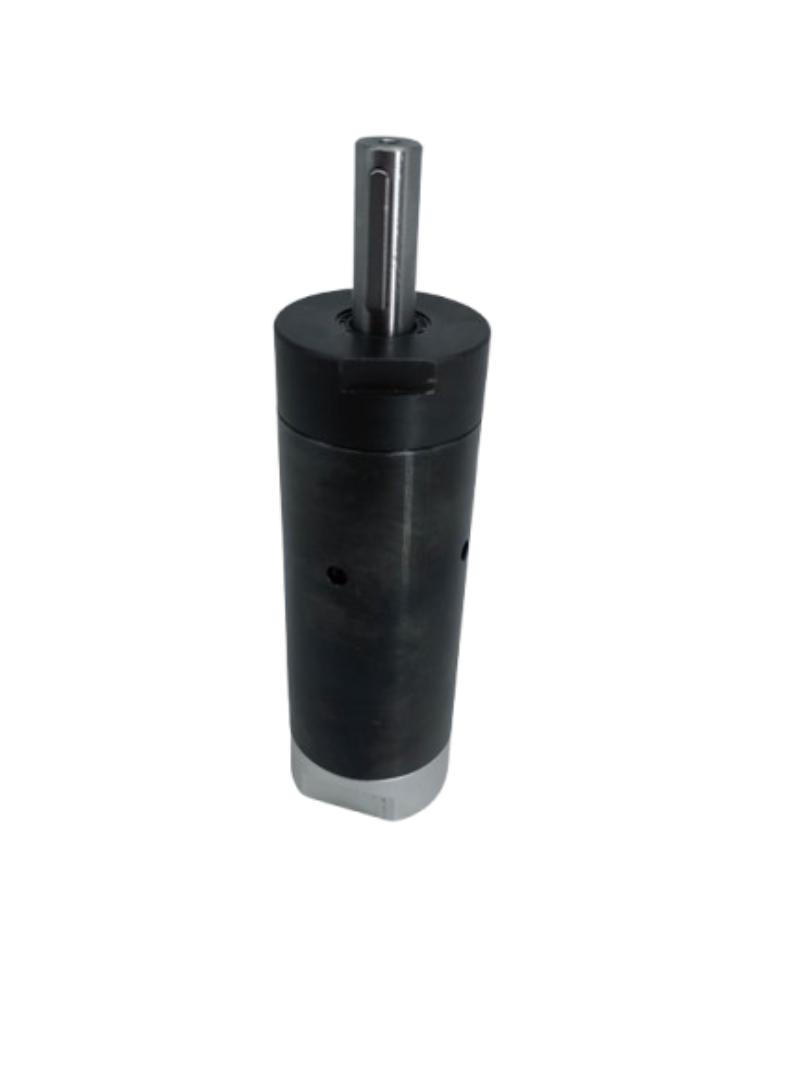

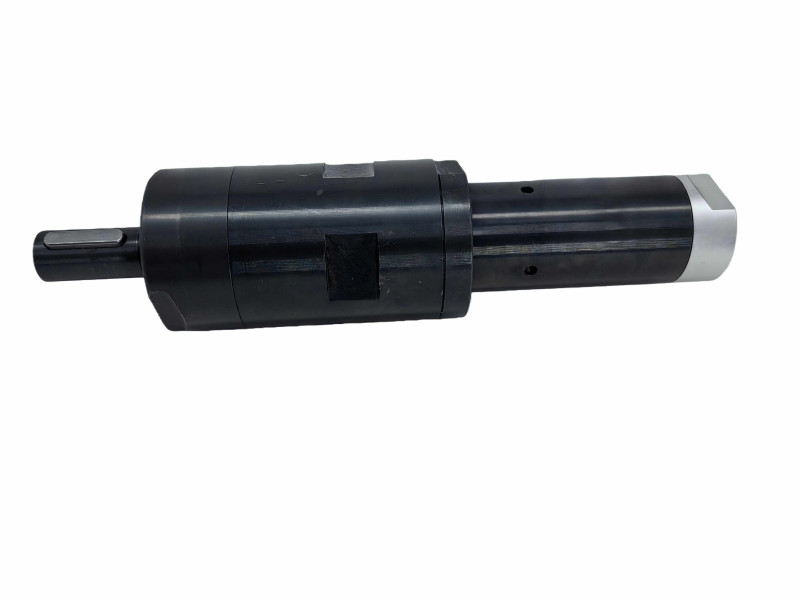

SAN MV Series Vane Air Motor - SAN MV03 AR0001 - AR150

  • SAN MV Series Vane Air Motor - SAN MV03 AR0001 - AR150
  • SAN MV Series Vane Air Motor - SAN MV03 AR0001 - AR150
  • SAN MV Series Vane Air Motor - SAN MV03 AR0001 - AR150

More Information Less Information

SAN MV Series

SAN MV Series Vane Air Motor - SAN MV03 AR0001 - AR150

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments
Specifications :
SKU MV03
max output power 0.23 kW / 0.31 hp - 0.25 kW / 0.34 hp
speed at max output 7 r/min - 7000 r/min
torque at max output 300 Nm / 221 lb-ft - 0.34 Nm / 0.25 lb-ft
min starting torque 412 Nm / 304 lb-ft - 0.46 Nm / 0.68 lb-ft
stall torque 600 Nm / 443 lb-ft - 0.68 Nm / 0.5 lb-ft
free speed 14 r/min - 13300 r/min
air consumption at max output 7.9 l/s / 16.8 cfm
net weight 5.0 kg / 11.1 lb - 0.75 kg / 1.65 lb

₹ XXXX INR + GST

Product Details

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments. Powered by compressed air, they are ideal for applications requiring variable speed, high torque, and safe operation in hazardous or explosive atmospheres.

Product Variation

Image SKU max output power speed at max output torque at max output min starting torque stall torque free speed air consumption at max output net weight Action
0.23 kW / 0.31 hp 7 r/min 300 Nm / 221 lb-ft 412 Nm / 304 lb-ft 600 Nm / 443 lb-ft 14 r/min 7.9 l/s / 16.8 cfm 5.0 kg / 11.1 lb
0.23 kW / 0.31 hp 10 r/min 220 Nm / 162 lb-ft 305 Nm / 225 lb-ft 440 Nm / 325 lb-ft 20 r/min 7.9 l/s / 16.8 cfm 5.0 kg / 11.1 lb
0.23 kW / 0.31 hp 13 r/min 165 Nm / 122 lb-ft 230 Nm / 170 lb-ft 330 Nm / 243 lb-ft 25 r/min 7.9 l/s / 16.8 cfm 5.0 kg / 11.1 lb
0.23 kW / 0.31 hp 18 r/min 120 Nm / 89 lb-ft 169 Nm / 125 lb-ft 240 Nm / 177 lb-ft 35 r/min 7.9 l/s / 16.8 cfm 5.0 kg / 11.1 lb
0.24 kW / 0.32 hp 25 r/min 93 Nm / 69 lb-ft 125 Nm / 92 lb-ft 186 Nm / 137 lb-ft 45 r/min 7.9 l/s / 16.8 cfm 2.6 kg / 5.8 lb
0.24 kW / 0.32 hp 31 r/min 75 Nm / 55 lb-ft 100 Nm / 74 lb-ft 150 Nm / 111 lb-ft 60 r/min 7.9 l/s / 16.8 cfm 2.6 kg / 5.8 lb
0.24 kW / 0.32 hp 41 r/min 56 Nm / 41 lb-ft 74 Nm / 55 lb-ft 112 Nm / 83 lb-ft 75 r/min 7.9 l/s / 16.8 cfm 2.6 kg / 5.8 lb
0.24 kW / 0.32 hp 55 r/min 42 Nm / 31 lb-ft 56 Nm / 41 lb-ft 84 Nm / 62 lb-ft 100 r/min 7.9 l/s / 16.8 cfm 2.6 kg / 5.8 lb
0.24 kW / 0.32 hp 75 r/min 31 Nm / 23 lb-ft 41 Nm / 30 lb-ft 62 Nm / 46 lb-ft 140 r/min 7.9 l/s / 16.8 cfm 2.6 kg / 5.8 lb
0.25 kW / 0.34 hp 190 r/min 12.1 Nm / 8.9 lb-ft 15.6 Nm / 11.5 lb-ft 24 Nm / 17.8 lb-ft 360 r/min 7.9 l/s / 16.8 cfm 1.02 kg / 2.25 lb
0.25 kW / 0.34 hp 240 r/min 9.8 Nm / 7.2 lb-ft 12.6 Nm / 9.3 lb-ft 19.6 Nm / 14.5 lb-ft 450 r/min 7.9 l/s / 16.8 cfm 1.02 kg / 2.25 lb
0.25 kW / 0.34 hp 430 r/min 5.4 Nm / 4.0 lb-ft 7.0 Nm / 5.2 lb-ft 10.8 Nm / 8.0 lb-ft 800 r/min 7.9 l/s / 16.8 cfm 1.02 kg / 2.25 lb
0.25 kW / 0.34 hp 880 r/min 2.7 Nm / 2.0 lb-ft 3.7 Nm / 2.7 lb-ft 5.4 Nm / 4.0 lb-ft 1700 r/min 7.9 l/s / 16.8 cfm 0.75 kg / 1.65 lb
0.25 kW / 0.34 hp 1090 r/min 2.2 Nm / 1.6 lb-ft 3.0 Nm / 2.2 lb-ft 4.4 Nm / 3.2 lb-ft 2000 r/min 7.9 l/s / 16.8 cfm 0.75 kg / 1.65 lb
0.25 kW / 0.34 hp 1960 r/min 1.2 Nm / 0.89 lb-ft 1.6 Nm / 1.2 lb-ft 2.4 Nm / 1.8 lb-ft 3800 r/min 7.9 l/s / 16.8 cfm 0.75 kg / 1.65 lb
0.25 kW / 0.34 hp 7000 r/min 0.34 Nm / 0.25 lb-ft 0.46 Nm / 0.68 lb-ft 0.68 Nm / 0.5 lb-ft 13300 r/min 7.9 l/s / 16.8 cfm 0.75 kg / 1.65 lb
