SAN MV Series

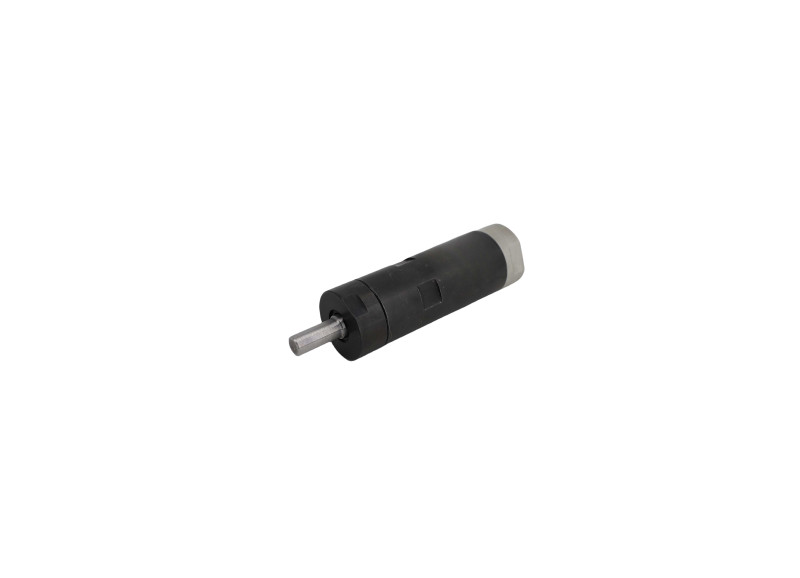

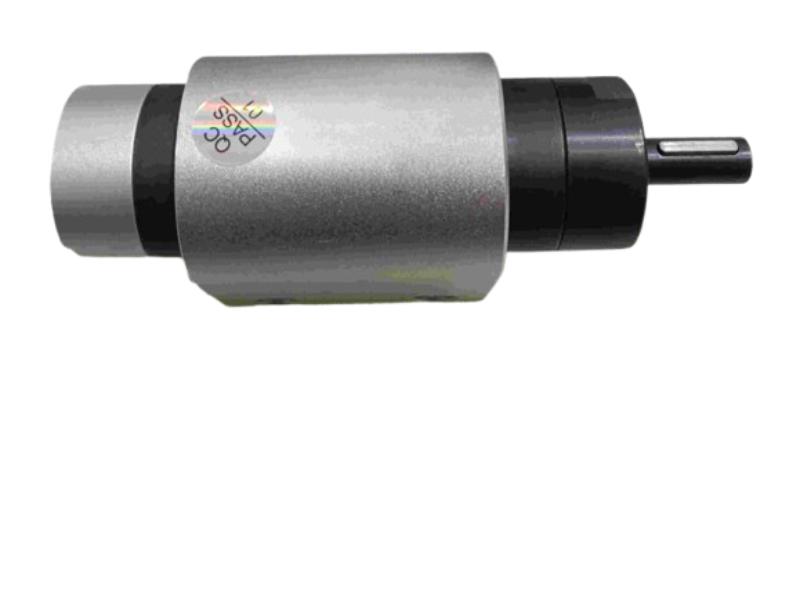

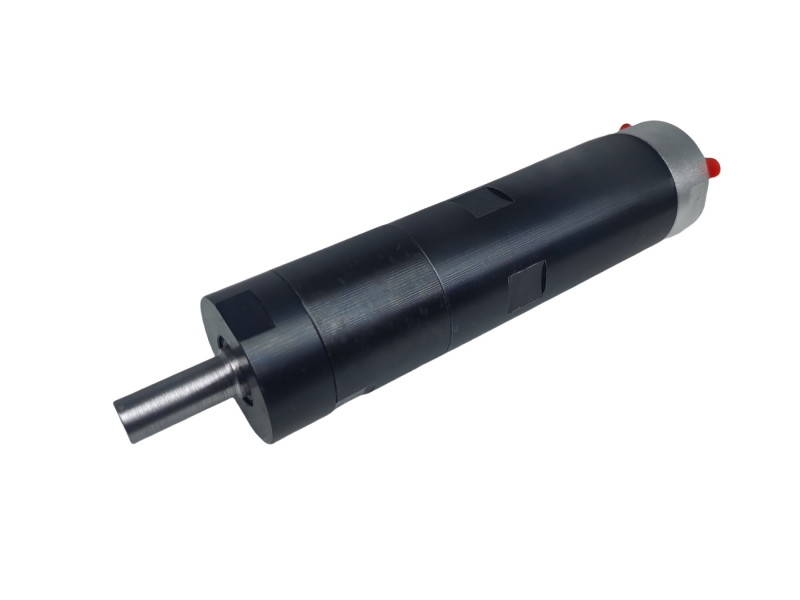

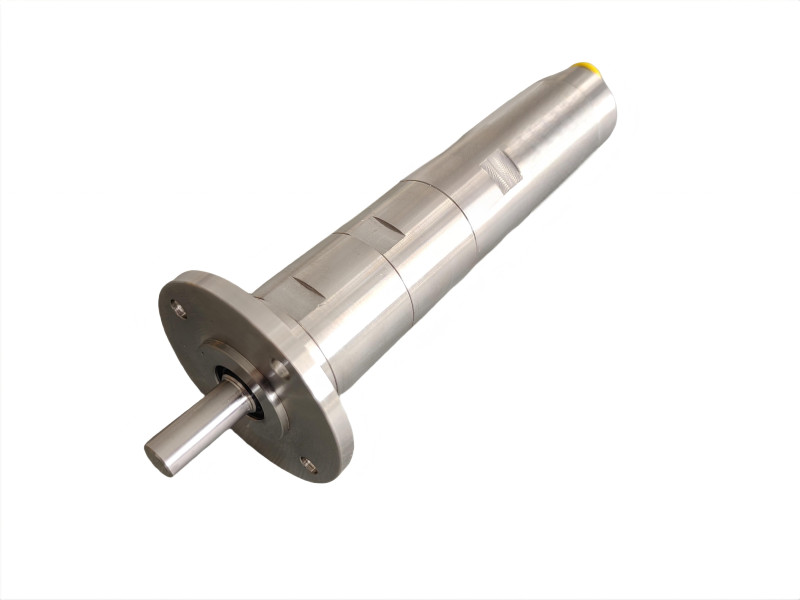

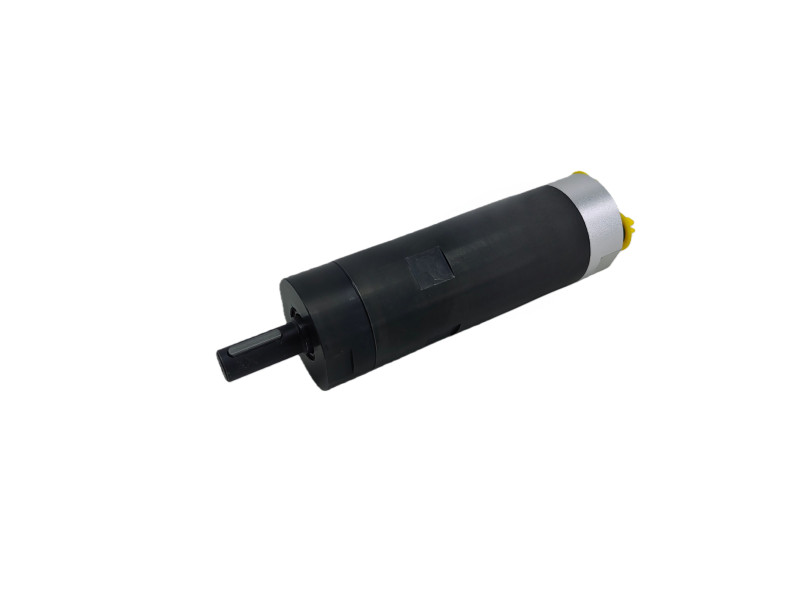

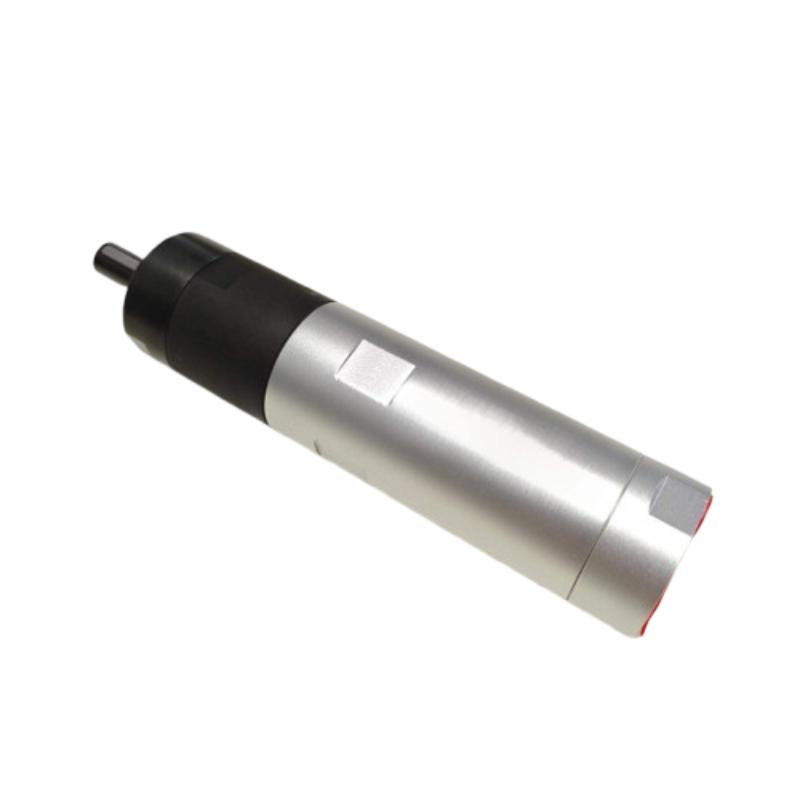

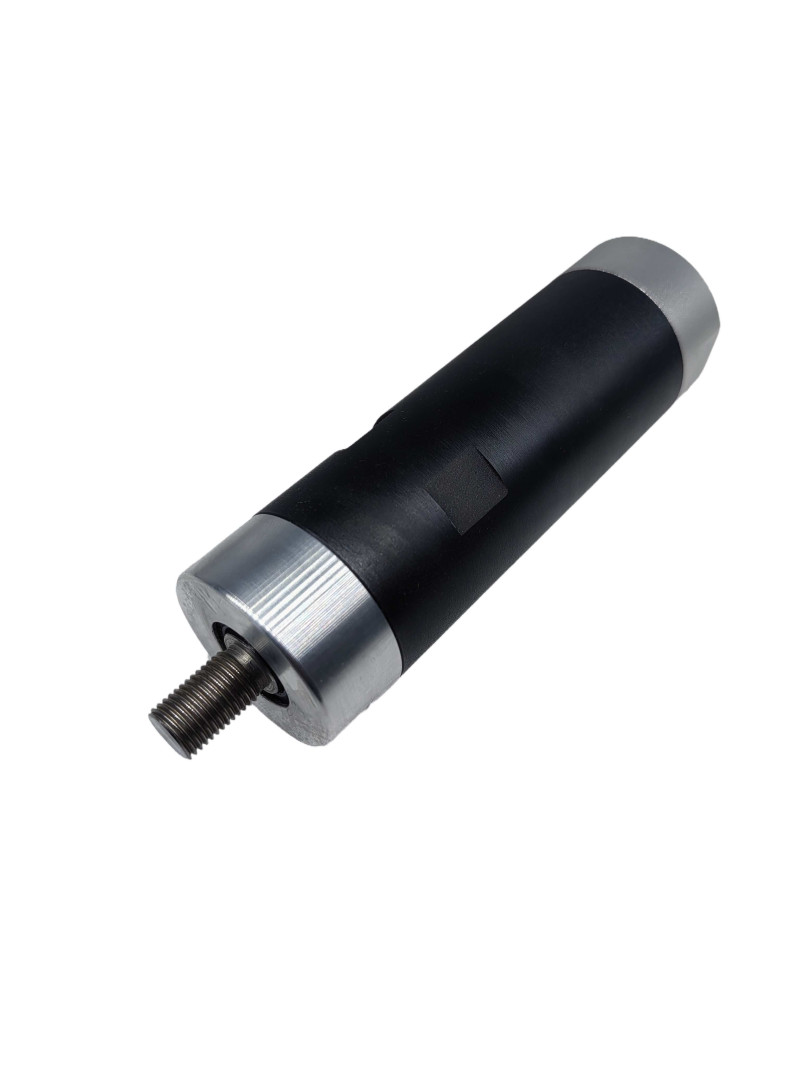

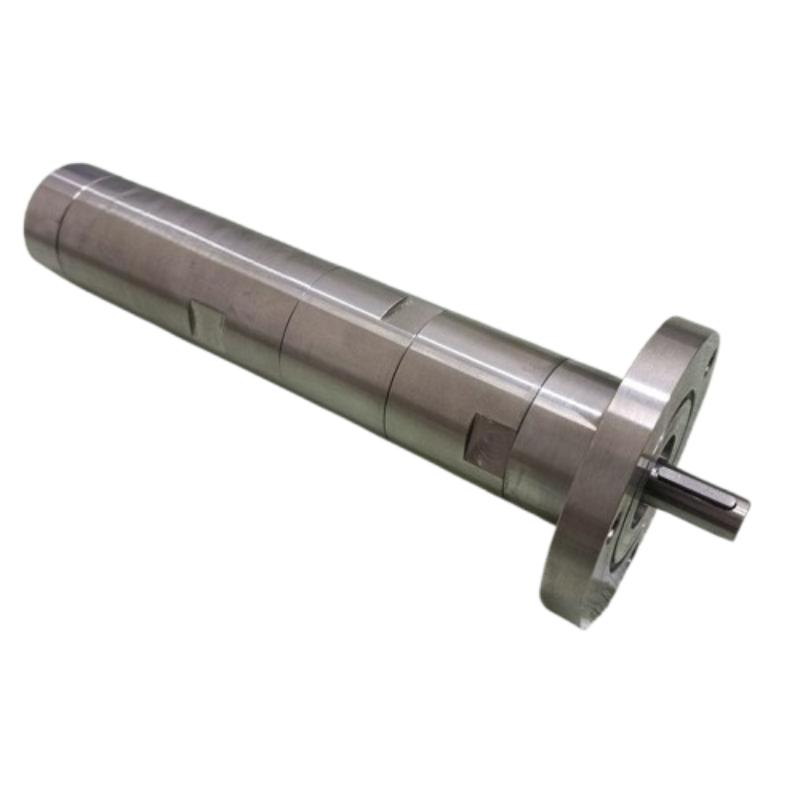

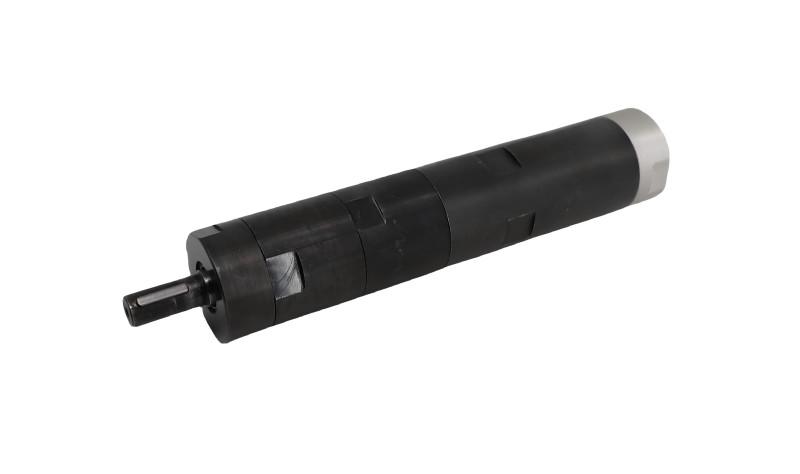

SAN MV Series Vane Air Motor - SAN MV02 AR003 - AR126

  • SAN MV Series Vane Air Motor - SAN MV02 AR003 - AR126
  • SAN MV Series Vane Air Motor - SAN MV02 AR003 - AR126
  • SAN MV Series Vane Air Motor - SAN MV02 AR003 - AR126

More Information Less Information

SAN MV Series

SAN MV Series Vane Air Motor - SAN MV02 AR003 - AR126

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments
Specifications :
SKU MV02
max output power 0.16 kW / 0.21 hp
speed at max output 160 r/min - 7000 r/min
torque at max output 10.5 Nm / 7.7 lb-ft - 0.24 Nm / 0.18 lb-ft
min starting torque 14 Nm / 10.3 lb-ft - 0.32 Nm / 0.24 lb-ft
stall torque 21 Nm / 15.5 lb-ft - 0.48 Nm / 0.35 lb-ft
free speed 290 r/min - 13100 r/min
air consumption at max output 5.0 l/s / 10.6 cfm
net weight 0.75 kg / 1.65 lb - 0.55 kg / 1.21 lb

₹ XXXX INR + GST

Product Details

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments. Powered by compressed air, they are ideal for applications requiring variable speed, high torque, and safe operation in hazardous or explosive atmospheres.



Product Variation

Image SKU max output power speed at max output torque at max output min starting torque stall torque free speed air consumption at max output net weight Action
0.16 kW / 0.21 hp 160 r/min 10.5 Nm / 7.7 lb-ft 14 Nm / 10.3 lb-ft 21 Nm / 15.5 lb-ft 290 r/min 5.0 l/s / 10.6 cfm 0.75 kg / 1.65 lb
0.16 kW / 0.21 hp 260 r/min 6.3 Nm / 4.6 lb-ft 8.5 Nm / 6.3 lb-ft 12.6 Nm / 9.3 lb-ft 480 r/min 5.0 Nm / 10.6 lb-ft 0.75 Nm / 1.65 lb-ft
0.16 kW / 0.21 hp 350 r/min 4.7 Nm / 3.5 lb-ft 6.3 Nm / 4.6 lb-ft 9.4 Nm / 6.9 lb-ft 640 r/min 5.0 l/s / 10.6 cfm 0.75 kg / 1.65 lb
0.16 kW / 0.21 hp 700 r/min 2.4 Nm / 1.8 lb-ft 3.2 Nm / 2.4 lb-ft 4.8 Nm / 3.5 lb-ft 1300 r/min 5.0 l/s / 10.6 cfm 0.55 kg / 1.21 lb
0.16 kW / 0.21 hp 1170 r/min 1.4 Nm / 1.0 lb-ft 1.9 Nm / 1.4 lb-ft 2.8 Nm / 2.1 lb-ft 2100 r/min 5.0 l/s / 10.6 cfm 0.55 kg / 1.21 lb
0.16 kW / 0.21 hp 1570 r/min 1.1 Nm / 0.81 lb-ft 1.4 Nm / 1.0 lb-ft 2.2 Nm / 1.6 lb-ft 2850 r/min 5.0 l/s / 10.6 cfm 0.55 kg / 1.21 lb
0.16 kW / 0.21 hp 7000 r/min 0.24 Nm / 0.18 lb-ft 0.32 Nm / 0.24 lb-ft 0.48 Nm / 0.35 lb-ft 13100 r/min 5.0 l/s / 10.6 cfm 0.55 kg / 1.21 lb
