SAN MV Series

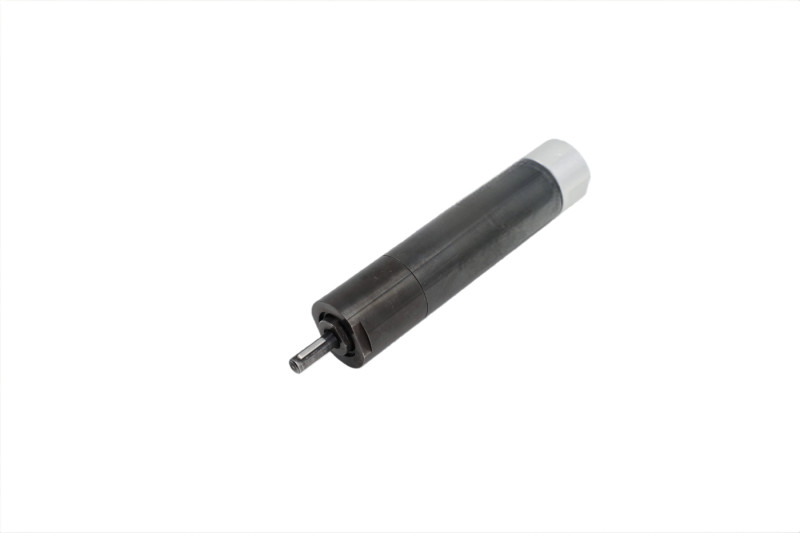

SAN MV Series Vane Air Motor - SAN MV01 AR005 - AR140

  • SAN MV Series Vane Air Motor - SAN MV01 AR005 - AR140
  • SAN MV Series Vane Air Motor - SAN MV01 AR005 - AR140
  • SAN MV Series Vane Air Motor - SAN MV01 AR005 - AR140

More Information Less Information

SAN MV Series

SAN MV Series Vane Air Motor - SAN MV01 AR005 - AR140

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments.
Specifications :
SKU MV01
max output power 0.11 kW / 0.15 hp
speed at max output 250 r/min - 7000 r/min
torque at max output 4.3 Nm / 3.2 lb-ft - 0.15 Nm / 0.11 lb-ft
min starting torque 6.9 Nm / 5.1 lb-ft - 0.24 Nm / 0.18 lb-f
stall torque 8.6 Nm / 6.3 lb-ft - 0.3 Nm / 0.22 lb-f
free speed 490 r/min - 13000 r/min
air consumption at max output 3.6 l/s / 7.6 cfm
net weight 0.33 kg / 0.73 lb - 3.0 l/s / 0.66 cfm

₹ XXXX INR + GST

Product Details

The SAN MV Series Air Motors are compact, reliable, and high-performance pneumatic motors designed for continuous operation in demanding industrial environments. Powered by compressed air, they are ideal for applications requiring variable speed, high torque, and safe operation in hazardous or explosive atmospheres.

Product Variation

Image SKU max output power speed at max output torque at max output min starting torque stall torque free speed air consumption at max output net weight Action
0.11 kW / 0.15 hp 250 r/min 4.3 Nm / 3.2 lb-ft 6.9 Nm / 5.1 lb-ft 8.6 Nm / 6.3 lb-ft 490 r/min 3.6 l/s / 7.6 cfm 0.33 kg / 0.73 lb
0.11 kW / 0.15 hp 410 r/min 2.6 Nm / 1.92 lb-ft 4.2 Nm / 3.1 lb-ft 5.2 Nm / 3.8 lb-ft 800 r/min 3.6 l/s / 7.6 cfm 0.33 kg / 0.73 lb
0.11 kW / 0.15 hp 1020 r/min 1.03 Nm / 0.76 lb-ft 1.67 Nm / 1.23 lb-ft 2.1 Nm / 1.5 lb-ft 2000 r/min 3.6 l/s / 7.6 cfm 0.30 kg / 0.66 lb
0.11 kW / 0.15 hp 1690 r/min 0.62 Nm / 0.46 lb-f 1.01 Nm / 0.74 lb-ft 1.24 Nm / 0.91 lb-ft 3400 r/min 3.6 l/s / 7.6 cfm 0.30 kg / 0.66 lb
0.11 kW / 0.15 hp 7000 r/min 0.15 Nm / 0.11 lb-ft 0.24 Nm / 0.18 lb-f 0.3 Nm / 0.22 lb-f 13000 r/min 3.6 l/s / 7.6 cfm 3.0 l/s / 0.66 cfm
