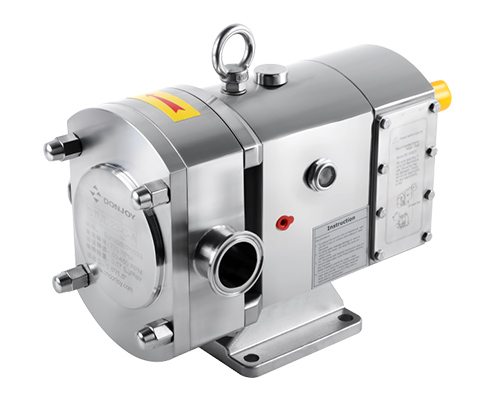

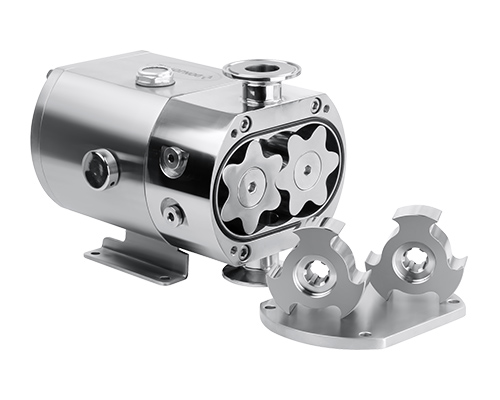

The MINI STU-10 Rotor Pump is a miniature displacement cam rotor pump for wide range of applications for high viscosity and low viscosity material handling. The design features of the pump are small size, low noise, wide speed range, simple maintenance and economy, all-stainless steel design includes gear box and the interior is highly clean, because all-stainless steel appearance is close to no dead angle and can be washed.

Max flow: 3000 L / h
Max pressure: 12 bar
Speed range: 10-1450 R.P.M
Working temperature (Max Temperature): -40 ° C to 150 ° C
Surface treatment: Ra≤0.6μm; EP=Ra0.4μm
Material: 100% stainless steel, medium contact part 316L
Certification: 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No .705201402401-00
