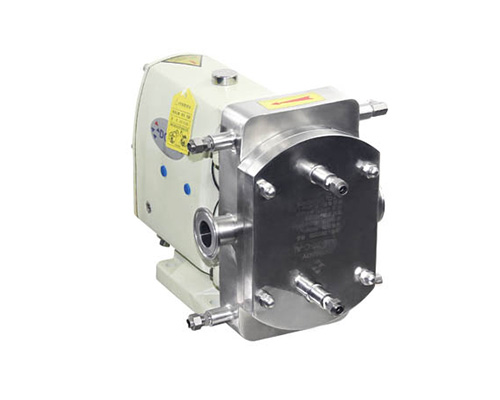

SAN PUMP Rotary pump with heat jacket , there are three jacket designs: periphery heat jacket,surface heat jacket and complete heat jacket. It is suitable for high viscosity fluid, such as chocolate,syrup, candy and etc. It will avoid freezing, deterioration caused by temperature deference.

◆ Maximum flow: 90m3 / H
◆ Maximum pressure: 20bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 750 rpm
◆ Material: ASTM 316L, 1.4404
◆ Inside surface: Ra0.8μm
◆ Certificate: 3-A-02-11NO.1579; CE-MD / 06-42; FDA.177.2600
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for CIP cleaning and SIP sterilization
