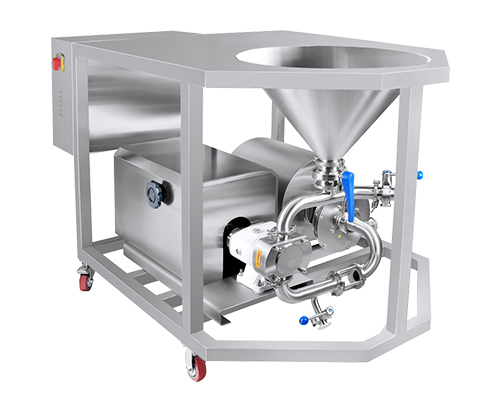

Homogeneous mixing pump SAN SHEAR - PMTU21

The SAN - PM series is a multifunctional material-liquid mixing pump with functions of mixing, shearing, emulsifying, homogenizing, differentiating, refining, crushing and material improvement. Compare with conventional production process, this pump is simpler, more convenient and economical, it can improve the production efficiency& improve the quality of the materials to be treated. Mainly used in food, beverages, dairy products, additives, personal care, biopharmaceuticals, thickeners, industrial applications.

The maximum processing capacity of powder: 9000KG/h
Maximum processing of thickeners: 3000KG/h (depending on material viscosity and concentration)
Maximum temperature: 130 ° C
Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment : ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single machine seal and double machine seal
Inlet/outlet connections: Thread, clamp, flange, sterile flange
Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;
