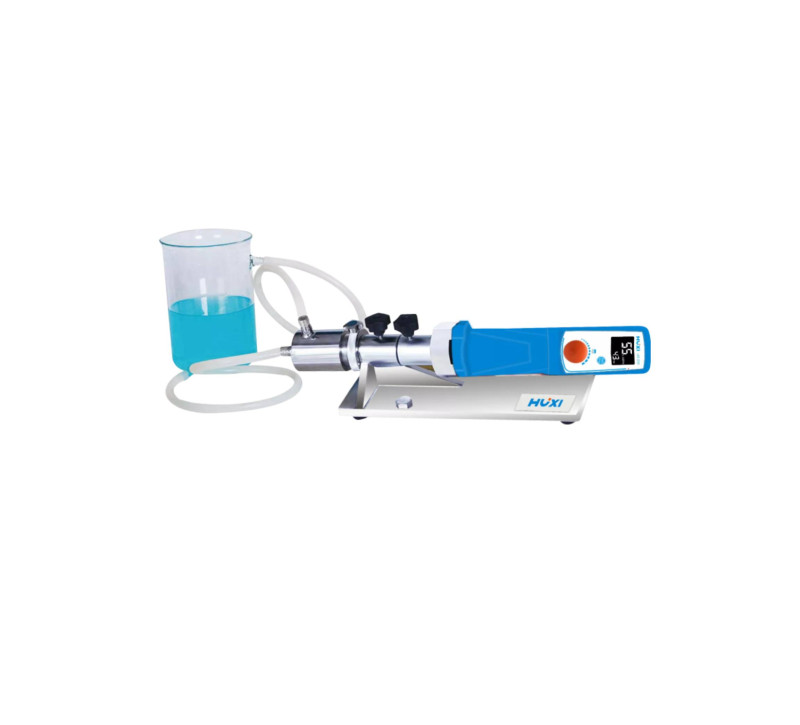

Inline Homogenizer
Product Details
Advantages
High-Efficiency High-Shear Mixing Performance
-
High mixing efficiency, long-term operation
100% Through-Shear Chamber Homogenization
-
100% can pass through the shear chamber, high-efficiency homogenization, no dispersion dead corners, etc.
Online Circulation & Continuous Processing Capability
-
Can meet online circulation or continuous processing
Multi-Function Processing
Can complete dispersion, emulsification, homogenization, mixing
Application field
-
chemical industry
Product features
High-Speed Brushless Motor Drive
-
Brushless motor, long life design
Ultra-High Speed & Strong Shear Force Output
-
Maximum speed can reach 30000rpm, maximum shear speed can be provided 27m2/s
Stainless Steel Construction for Chemical Applications
-
Working head and machine base are made of stainless steel, corrosion-resistant
Designed for Chemical Industry Applications
-
Good sealing effect, unique stator and rotor structure, generate super strong shear force, quickly reduce particles, process materials more finely, and disperse more evenly
The technical Parameters
|
Model |
HZR-25 |
HZR-25D |
|
Motor power |
1250w |
750w |
|
Motor type |
DC brushless motor |
DC brushless motor |
|
Speed range |
4500~30000rpm |
4000~26000rpm |
|
Speed mode |
Gear control |
Knob control |
|
Speed display |
/ |
LCD |
|
Mixing capacity(H2O) |
1~30l/min |
1~20l/min |
|
Max Viscosity |
10000cp |
10000cp |
|
Standard working head |
25DG |
25DG |
|
Standard working chamber |
Stainless steel unjacketed working chamber |
Stainless steel unjacketed working chamber |
|
Contact material |
SUS316L |
SUS316L |
|
Mechanical seal material |
SiC |
SiC |
|
Inlet and outlet outer diameter |
14 (hose interface) |
14 (hose interface) |
|
Dimensions |
460*120*120mm |
460*120*120mm |
|
Working head and bracket material |
Stainless steel |
Stainless steel |
|
Base material |
Stainless steel |
Stainless steel |
|
Removal tool material |
Stainless steel |
Stainless steel |
|
Power supply |
220V50HZ |
220V50HZ |
|
Permitted ambient temperature
|
5-40℃ |
5-40℃ |
|
Permitted ambient humidity |
80% |
80% |
HZR-25 Specification data as below
|
Gears |
1 |
2 |
3 |
4 |
5 |
6 |
|
Speed |
7500rpm |
9000rpm |
11550rpm |
17000rpm |
21800rpm |
30000 |
