Homogenizers

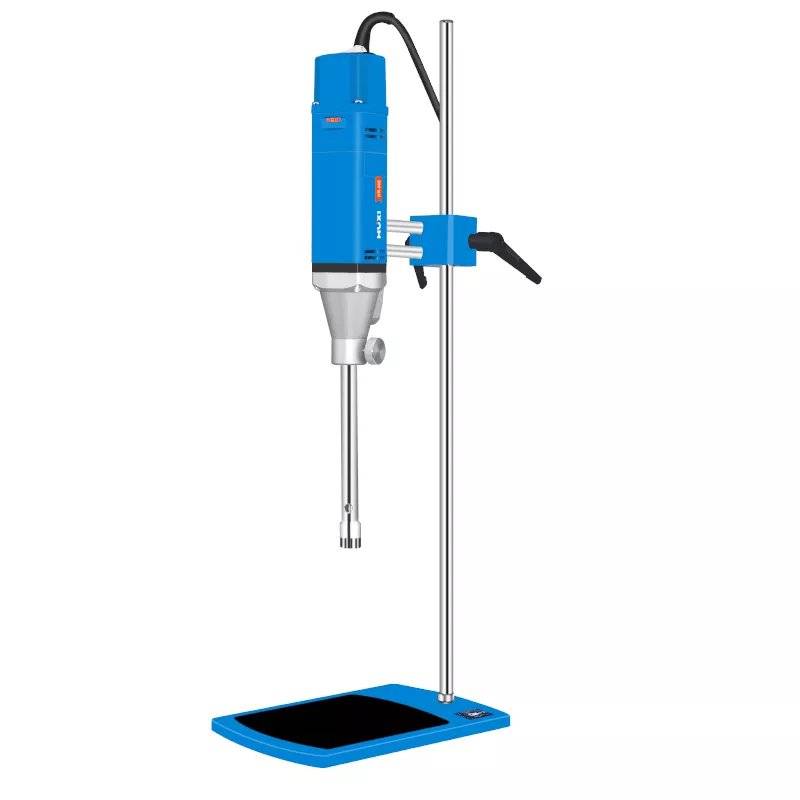

HUXI 0.2~15000ml,2500~30000rpm Supreme High Shear Homogenizer
Product Details
The laboratory homogenizing and emulsifying machine is designed for sample homogenization and emulsification, which can be equipped with a variety of different working heads to quickly achieve the sample dispersion, homogenization, emulsification, oil suspension, mixing, etc., mainly for medium batch.
Product features:
-
Stepless variable speed, high precision digital display, strong torque output;
-
Double stator structure, multiply the shearing effect;
-
With a variety of forms of stator, can be used according to the process requirements interchangeable;
-
Double safety protection
Technical Parameter:
| Model | HR-25Z | HR-30Z | HR-40Z |
| Item No | 1004031001 | 1004032001 | 1004033001 |
| Power(W) | 600 | 1050 | 1800 |
| Power Supply | 220V,50Hz/110V,60Hz | 220V,50Hz/60Hz | 220V,50Hz/60Hz |
| Capacity(H2O)ml | 0.2~7000 | 0.2~10000 | 500~15000 |
| Max Capacity(Cp) | 8000 | 8000 | 8000 |
| Speed Range(no load)(rpm) | 11000~30000 | 3500~25000 | 2500~23500 |
| Speed Adjust | Scale | Scale | Scale |
| Speed Control | Stepless | Stepless | Stepless |
| Sample Touch Part Material | SS316L | SS316L | SS316L |
| Bearing Material | PTFE | PTFE | PTFE |
| Standard Working Head | 25G | 30G | 40G |
| Allowable ambient temperature(°C) | 5~40 | 5~40 | 5~40 |
| Allowable relative humidity(%) | ≤80 | ≤80 | ≤80 |
| Process type | Batch processing | Batch processing | Batch processing |
| Stand&Base | Standard | Standard | Standard |
HR-25Z Reference Speed
| Gear | 1 | 2 | 3 | 4 | 5 | 6 |
| RPM | 11000 | 15000 | 19000 | 22000 | 26000 | 30000 |
HR-30Z Reference Speed
| Gear | 1 | 2 | 3 | 4 | 5 | 6 |
| RPM | 3500 | 7000 | 12000 | 17000 | 21000 | 25000 |
HR-40Z Reference Speed
| Gear | 1 | 2 | 3 | 4 | 5 | 6 |
| RPM | 2500 | 7000 | 11000 | 15000 | 19000 | 23500 |
