Homogenizers

2ml~150ml Handheld High Speed rotor stator Tissue Homogenizer

Homogenizers

2ml~150ml Handheld High Speed rotor stator Tissue Homogenizer

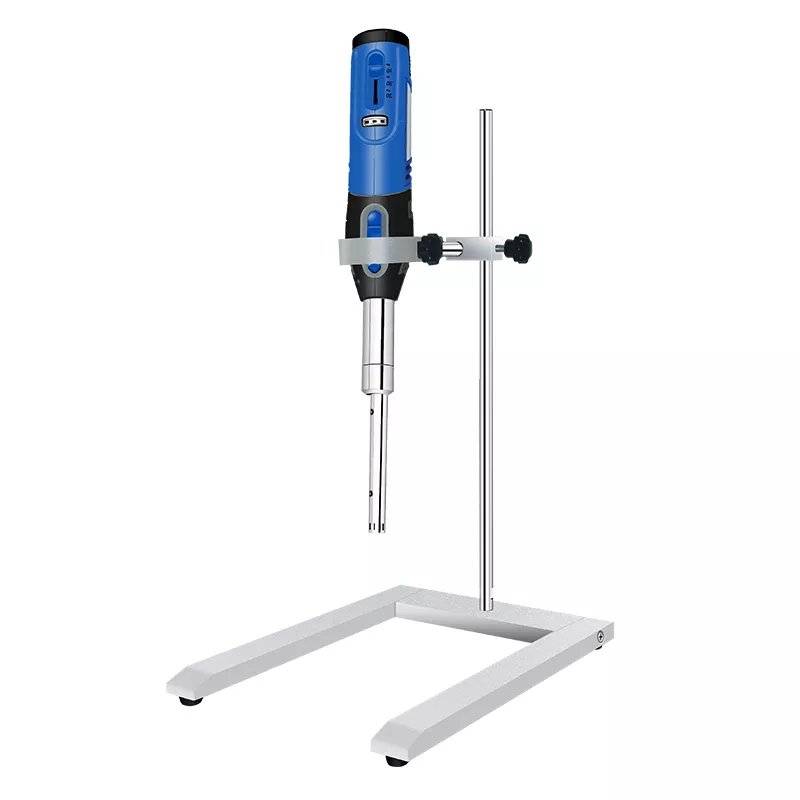

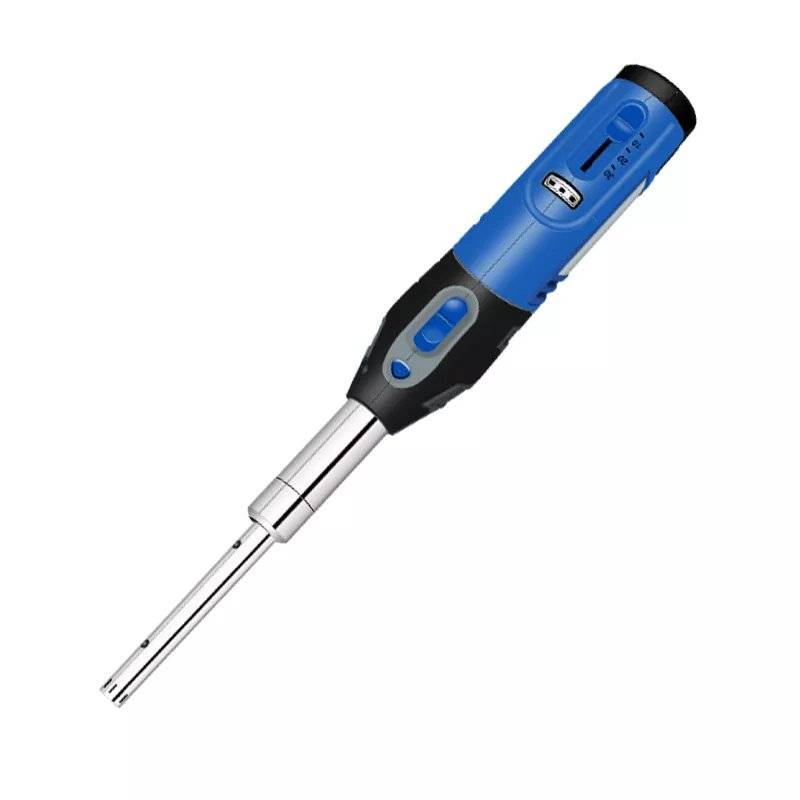

HR-6B is a handheld/stent-supported small, fast tissue homogenizer,dispersion andemulsifier, suitable for 0.2-50mL,1-150ml liquid/liquid, liquid/solid samples with differentdispersion heads, up to 35000rpm.

₹ XXXX INR + GST

Product Details

HR-6B is a handheld/stent-supported small, fast tissue homogenizer,dispersion andemulsifier, suitable for 0.2-50mL,1-150ml liquid/liquid, liquid/solid samples with differentdispersion heads, up to 35000rpm.Applied in biopharmaceutical, gene research.tissue fragmentation, cytoplasmosis, pathological analysis, oil-water emulsification,nanomaterial dispersion, dairy homogenization, polymerization reaction, daily cosmet-ics,Ink coating, fine chemicals, pesticides, mineral exploration, environmental protec-tion, energy and other fields.

Features

  • The design is light and portable, which can be operated with one hand;Reusable, easy to remove, easy to clean;
  • High quality 316L stainless steel dispersion head, corrosion resistance, hightemperature disinfection;
  • Dispersion head easy to disassemble, easy to clean;High speed and high efficiency motor, double insulation protection, ensure safety;Can be mixed, dispersed, emulsified, homogenized and other operations;Suitable for batch processing of fluid materials in small container, such as muscle,viscera, fiber, etc.
  • HR-6B is power plug type ; HR-10B is battery only

The specification

Model

HR-6B

HR-10B

Voltage

220V

220~240V(Input) ,12DC

A

Frequency

50Hz

50Hz/60Hz

Power

120W

100W

Capacity

0.2~150ml(with optional working heads)

0.2~150ml(with optional working heads)

Viscosity maps

Micro batch processing

Micro batch processing

Speed range

1000~32000rpm

5000~30000rpm

Speed sdjust

0~6gears

0~6gears

Standard working head

HR-6P-10G-M2V

HR-6P-10G-M2V

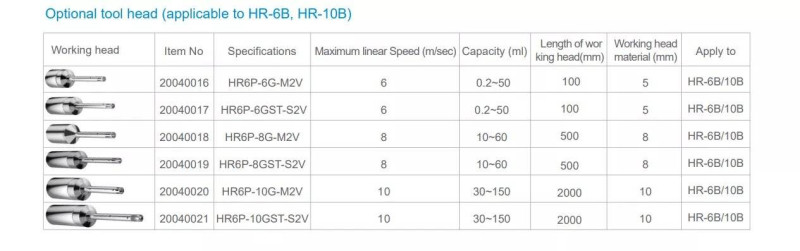

Optional working head

HR6P-6G-M2V/HR6P-6GST-SV2/HR6P-8G-M2V/HR6P-8GST-MV2/HR6P-10GST-S2V

Sample touch material

SUS316L

Bearings material

PTFE

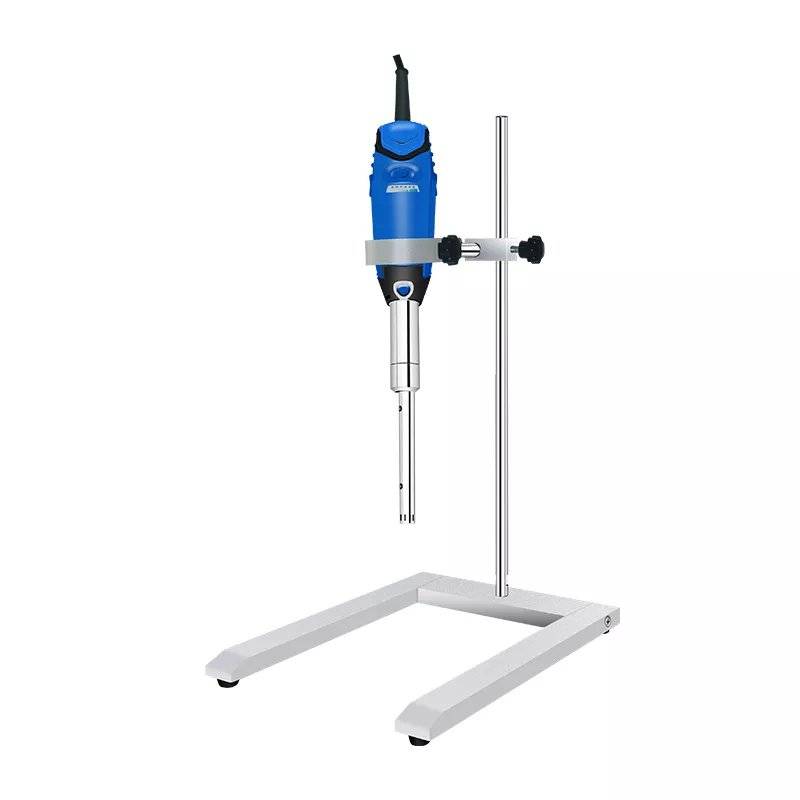

Stand

Single stand(support)

Packing list

Aluminum carrying case

Host list

185*55mm

240*60mm

Host weight

2kg

2.1kg

Host packing GW(kg)

3.3kg

3.5kg

Set packing GW(kg)

6kg

6.2kg
